F7-36

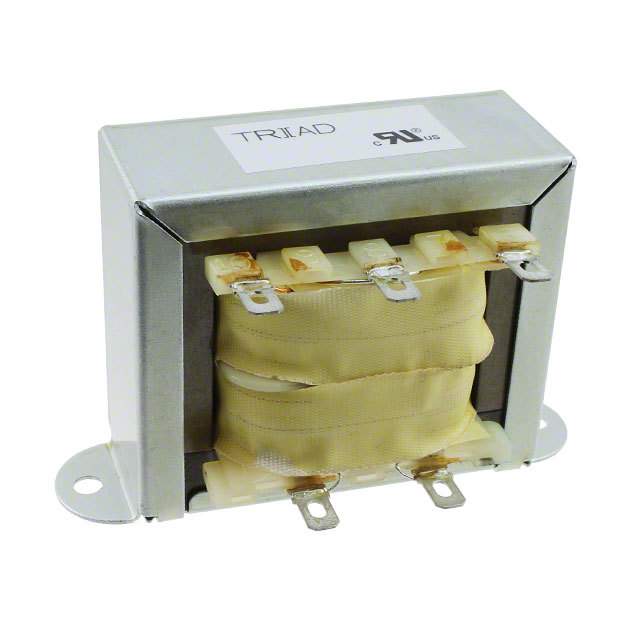

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy F7-36 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy F7-36 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | F7-36 |
|---|---|
| Manufacturer | Triad Magnetics |
| Description | XFRMR LAMINATED THRU HOLE |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | ||||
|---|---|---|---|---|---|
| $6.555 | |||||
- Product parameter
- Data sheet
Product parameter
| Part Number | F7-36 | Manufacturer | Triad Magnetics |
|---|---|---|---|
| Description | XFRMR LAMINATED THRU HOLE | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 4997 pcs | Data sheet | F7-36 DataSheet |
| Category | Transformers | Weight | 1.7 lbs (771.1g) |
| Voltage - Secondary (Full Load) | 36V | Voltage - Primary | 115V |
| Voltage - Isolation | 2500VAC | Type | Laminated Core |
| Termination Style | Solder, Quick Connect - 0.187" (4.7mm) | Size / Dimension | 93.65mm L x 46.02mm W |
| Series | Quick Pack | Secondary Winding(s) | Single |
| Primary Winding(s) | Single | Power - Max | 56 VA |
| Other Names | 237-1714 | Mounting Type | Chassis Mount |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Manufacturer Standard Lead Time | 16 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Height - Seated (Max) | 57.15mm |
| Current - Output (Max) | 1.5A | Center Tap | Yes |
