F7-24-B

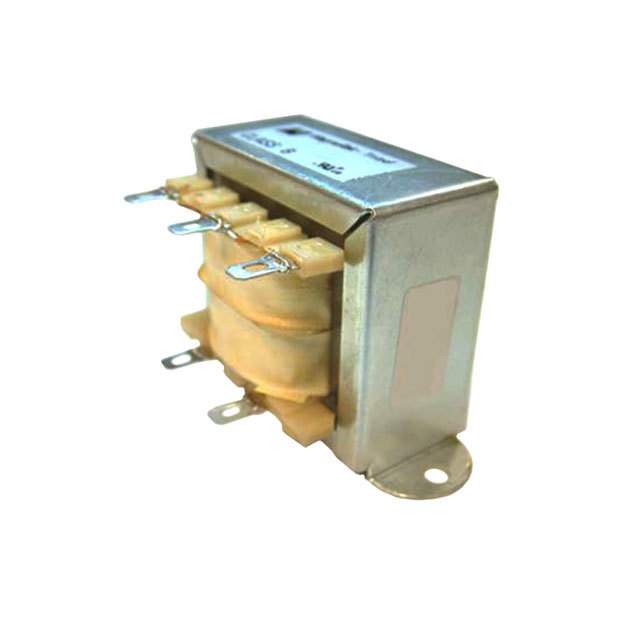

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy F7-24-B with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy F7-24-B with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | F7-24-B |
|---|---|
| Manufacturer | Triad Magnetics |
| Description | XFRMR LAMINATED 56VA CHAS MOUNT |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 12 pcs | ||||
|---|---|---|---|---|---|
| $4.947 | |||||
- Product parameter
- Data sheet
Product parameter
| Part Number | F7-24-B | Manufacturer | Triad Magnetics |
|---|---|---|---|
| Description | XFRMR LAMINATED 56VA CHAS MOUNT | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 6889 pcs | Data sheet | F7-24 |
| Category | Transformers | Weight | 1.7 lbs (771.1g) |
| Voltage - Secondary (Full Load) | 24V | Voltage - Primary | 115V |
| Voltage - Isolation | 2500VAC | Type | Laminated Core |
| Termination Style | Solder, Quick Connect - 0.187" (4.7mm) | Size / Dimension | 93.65mm L x 46.02mm W |
| Series | Quick Pack | Secondary Winding(s) | Single |
| Primary Winding(s) | Single | Power - Max | 56 VA |
| Mounting Type | Chassis Mount | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Manufacturer Standard Lead Time | 16 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Height - Seated (Max) | 57.15mm | Current - Output (Max) | 2.4A |
| Center Tap | Yes |
