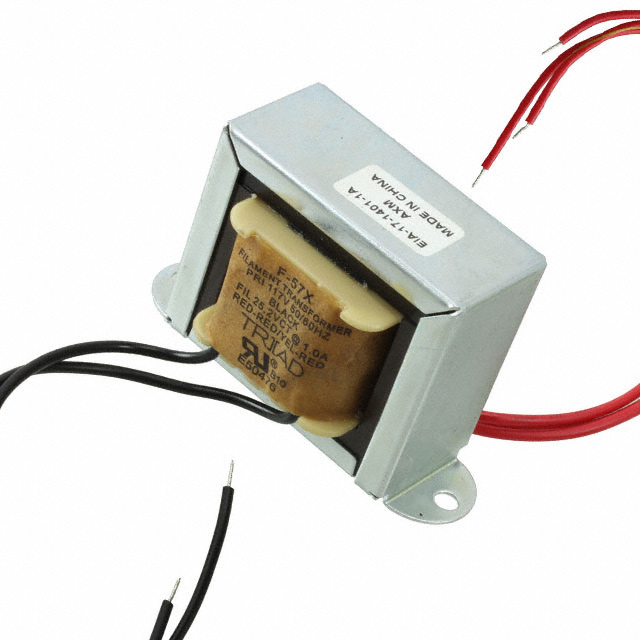

F-57X
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy F-57X with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy F-57X with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | F-57X |
|---|---|
| Manufacturer | Triad Magnetics |
| Description | POWER XFMR CHASSIS MOUNT W/LEADS |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 50 pcs | |
|---|---|---|---|---|---|
| $4.757 | $3.514 | $3.243 | $3.135 | ||
| 100 pcs | 250 pcs | 500 pcs | 1000 pcs | ||
| $3.049 | $3.006 | $2.973 | $2.919 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | F-57X | Manufacturer | Triad Magnetics |
|---|---|---|---|
| Description | POWER XFMR CHASSIS MOUNT W/LEADS | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 12126 pcs | Data sheet | F-57X Datasheet |
| Category | Transformers | Weight | 1.5 lbs (680.4g) |
| Voltage - Secondary (Full Load) | 25.2V | Voltage - Primary | 117V |
| Voltage - Isolation | 1500Vrms | Type | Laminated Core |
| Termination Style | Wire Leads | Size / Dimension | 80.56mm L x 50.80mm W |
| Series | Single Secondary | Secondary Winding(s) | Single |
| Primary Winding(s) | Single | Power - Max | 25.2 VA |
| Other Names | 237-2004 | Mounting Type | Chassis Mount |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Manufacturer Standard Lead Time | 2 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Height - Seated (Max) | 49.20mm |
| Current - Output (Max) | 1A | Center Tap | Yes |
