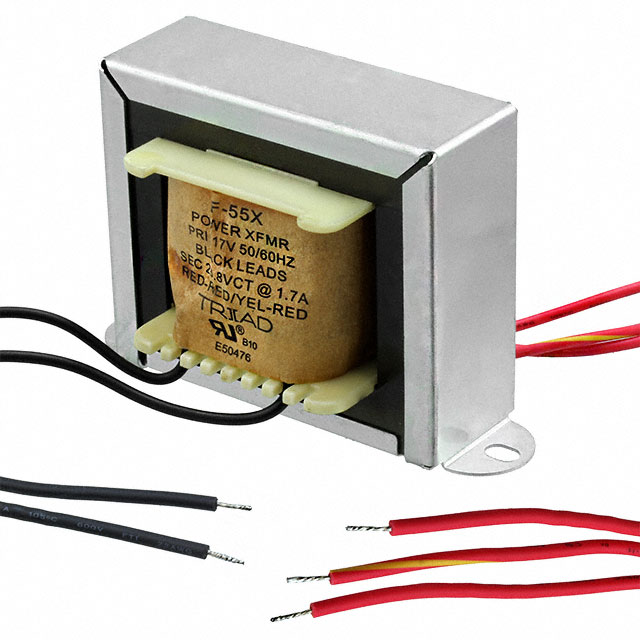

F-55X
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy F-55X with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy F-55X with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | F-55X |
|---|---|
| Manufacturer | Triad Magnetics |
| Description | POWER XFMR CHASSIS MOUNT W/LEADS |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 8 pcs | ||||
|---|---|---|---|---|---|
| $6.644 | |||||
- Product parameter
- Data sheet
Product parameter
| Part Number | F-55X | Manufacturer | Triad Magnetics |
|---|---|---|---|
| Description | POWER XFMR CHASSIS MOUNT W/LEADS | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 4715 pcs | Data sheet | F-55X Datasheet |
| Category | Transformers | Weight | 2.3 lbs (1kg) |
| Voltage - Secondary (Full Load) | 26.8V | Voltage - Primary | 115V |
| Voltage - Isolation | 1500Vrms | Type | Laminated Core |
| Termination Style | Wire Leads | Size / Dimension | 101.60mm L x 57.15mm W |
| Series | Single Secondary | Secondary Winding(s) | Single |
| Primary Winding(s) | Single | Power - Max | 45.6 VA |
| Other Names | 237-2002 | Mounting Type | Chassis Mount |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Manufacturer Standard Lead Time | 16 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Height - Seated (Max) | 65.86mm |
| Current - Output (Max) | 1.7A | Center Tap | Yes |
