F-152XP

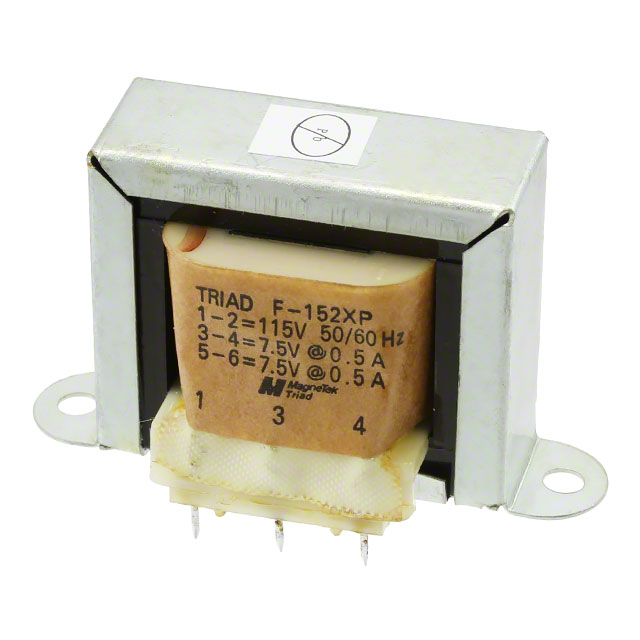

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy F-152XP with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy F-152XP with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | F-152XP |
|---|---|
| Manufacturer | Triad Magnetics |
| Description | POWER TRANSFORMER PCB MOUNT |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 50 pcs | |
|---|---|---|---|---|---|
| $3.507 | $2.686 | $2.276 | $2.238 | ||
| 100 pcs | 250 pcs | 500 pcs | 1000 pcs | ||
| $2.126 | $2.104 | $2.074 | $2.052 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | F-152XP | Manufacturer | Triad Magnetics |
|---|---|---|---|
| Description | POWER TRANSFORMER PCB MOUNT | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 18141 pcs | Data sheet | F-152XP Datasheet |
| Category | Transformers | Weight | 0.657 lb (298.01g) |
| Voltage - Secondary (Full Load) | Parallel 7.5V, Series 15V | Voltage - Primary | 115V |
| Voltage - Isolation | 1500Vrms | Type | Laminated Core |
| Termination Style | PC Pin | Size / Dimension | 71.42mm L x 37.29mm W |
| Series | Single Primary | Secondary Winding(s) | Dual |
| Primary Winding(s) | Single | Power - Max | 7.5 VA |
| Other Names | 237-1918 | Mounting Type | User Defined |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Manufacturer Standard Lead Time | 16 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Height - Seated (Max) | 41.28mm |
| Current - Output (Max) | Parallel 1A, Series 500mA | Center Tap | No |
