F-149XP

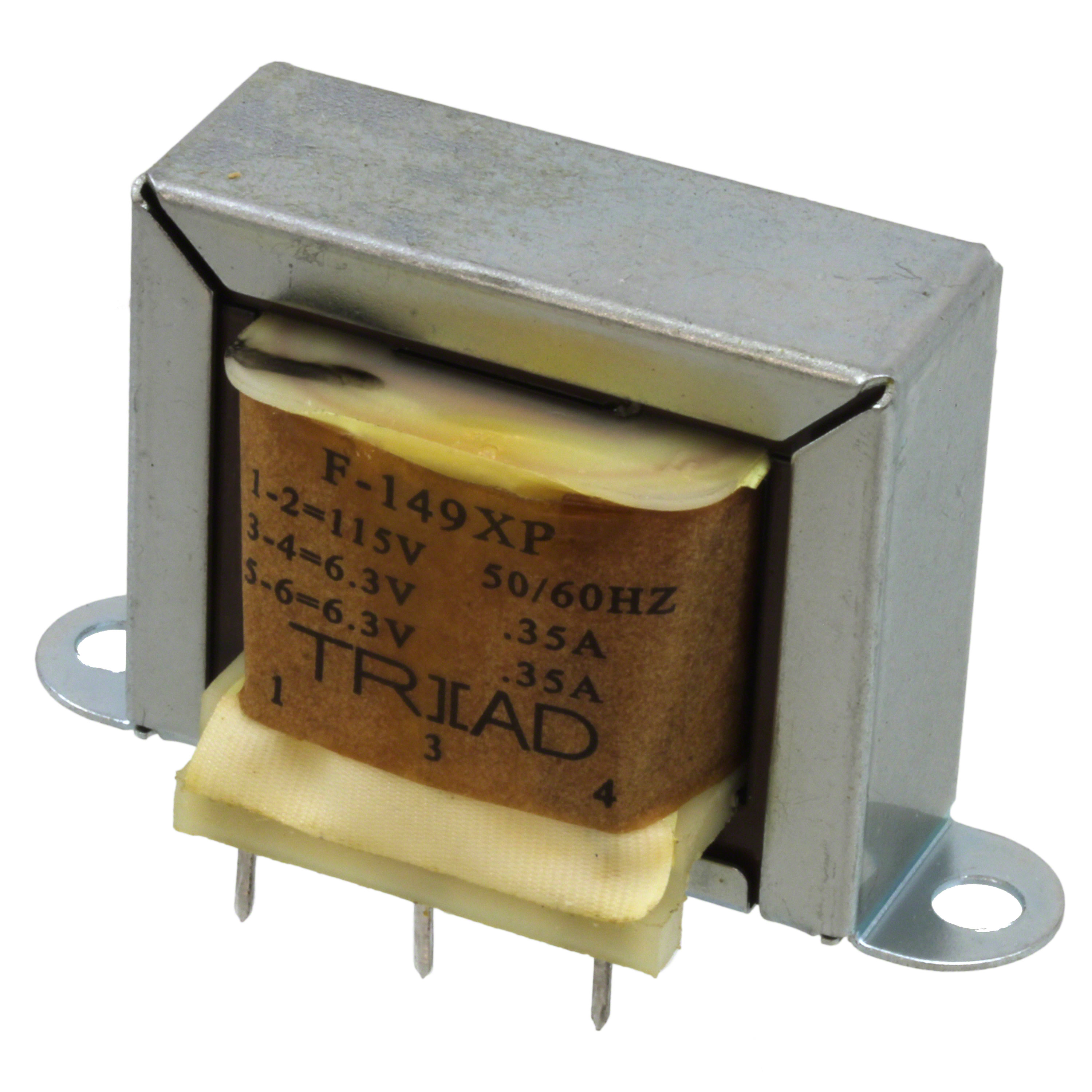

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy F-149XP with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy F-149XP with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | F-149XP |
|---|---|
| Manufacturer | Triad Magnetics |
| Description | POWER TRANSFORMER PCB MOUNT |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 50 pcs | |
|---|---|---|---|---|---|
| $3.274 | $2.544 | $2.475 | $2.132 | ||
| 100 pcs | 250 pcs | 500 pcs | 1000 pcs | ||
| $2.035 | $1.994 | $1.96 | $1.925 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | F-149XP | Manufacturer | Triad Magnetics |
|---|---|---|---|
| Description | POWER TRANSFORMER PCB MOUNT | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 18773 pcs | Data sheet | F-149XP Datasheet |
| Category | Transformers | Weight | 0.469 lb (212.73g) |
| Voltage - Secondary (Full Load) | Parallel 6.3V, Series 12.6V | Voltage - Primary | 115V |
| Voltage - Isolation | 1500Vrms | Type | Laminated Core |
| Termination Style | PC Pin | Size / Dimension | 60.32mm L x 31.75mm W |
| Series | Single Primary | Secondary Winding(s) | Dual |
| Primary Winding(s) | Single | Power - Max | 4.5 VA |
| Other Names | 237-1916 | Mounting Type | User Defined |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Manufacturer Standard Lead Time | 16 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Height - Seated (Max) | 36.50mm |
| Current - Output (Max) | Parallel 700mA, Series 350mA | Center Tap | No |
