CST206-2A-B

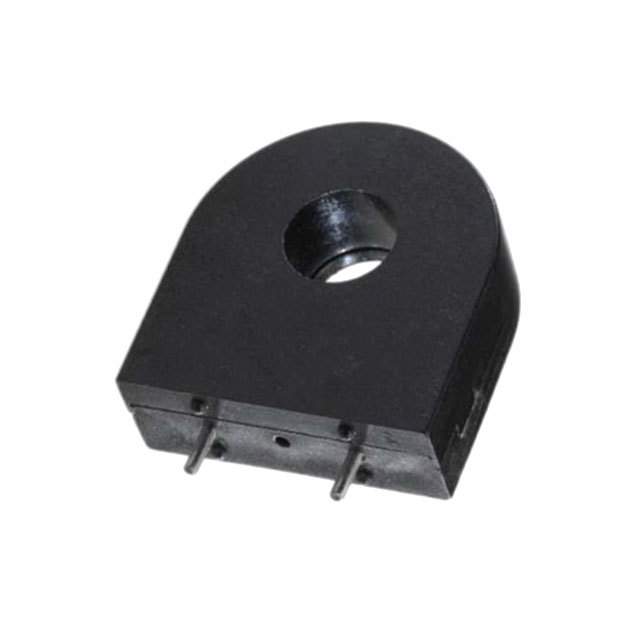

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy CST206-2A-B with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy CST206-2A-B with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | CST206-2A-B |
|---|---|
| Manufacturer | Triad Magnetics |
| Description | CURR SENSE XFMR 80A T/H |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 378 pcs | ||||
|---|---|---|---|---|---|
| $1.551 | |||||
- Product parameter
- Data sheet
Product parameter
| Part Number | CST206-2A-B | Manufacturer | Triad Magnetics |
|---|---|---|---|
| Description | CURR SENSE XFMR 80A T/H | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 19202 pcs | Data sheet | CST206-2A |
| Category | Transformers | Weight | - |
| Type | Non-Invasive (Solid Core) | Turns Ratio - Primary:Secondary | - |
| Termination Style | PC Pin | Size / Dimension | 1.075" L x 0.400" W (27.31mm x 10.16mm) |
| Series | CST | Ratings | - |
| Packaging | Bulk | Mounting Type | Through Hole |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Manufacturer Standard Lead Time | 16 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Inductance | 56mH |
| Height - Seated (Max) | 1.225" (31.12mm) | Frequency Range | 20kHz ~ 200kHz |
| Energy Time (E.T.) | 4000V µS | Detailed Description | 80A Current Sense Transformer 20kHz ~ 200kHz 3.5 Ohm Max 56mH Through Hole |
| DC Resistance (DCR) | 3.5 Ohm Max | Current Ratio | 200:1 |
| Current Rating | 80A |
