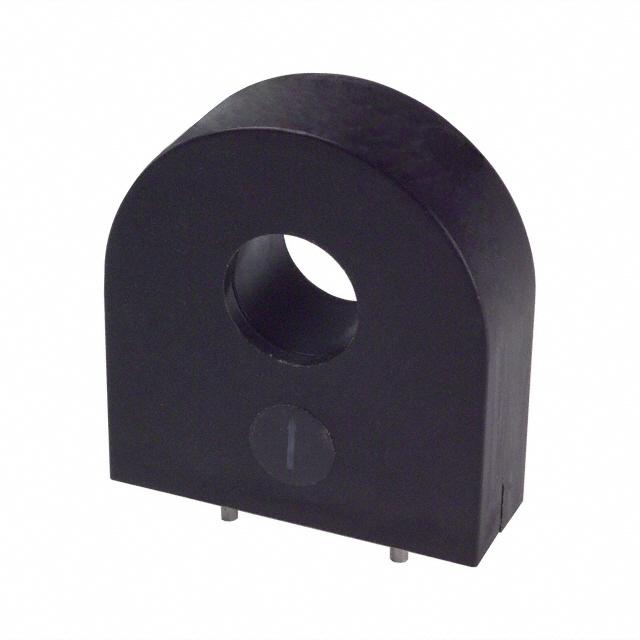

CST206-1A
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy CST206-1A with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy CST206-1A with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | CST206-1A |
|---|---|
| Manufacturer | Triad Magnetics |
| Description | CURR SENSE XFMR 110A T/H |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 50 pcs | |
|---|---|---|---|---|---|
| $2.551 | $1.94 | $1.889 | $1.736 | ||
| 100 pcs | 250 pcs | 500 pcs | 1000 pcs | ||
| $1.633 | $1.582 | $1.531 | $1.48 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | CST206-1A | Manufacturer | Triad Magnetics |
|---|---|---|---|
| Description | CURR SENSE XFMR 110A T/H | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 23377 pcs | Data sheet | CST206-1A |
| Category | Transformers | Weight | - |
| Type | Non-Invasive (Solid Core) | Turns Ratio - Primary:Secondary | - |
| Termination Style | PC Pin | Size / Dimension | 1.075" L x 0.400" W (27.31mm x 10.16mm) |
| Series | CST | Ratings | - |
| Packaging | Bulk | Other Names | 237-1096 CST2061A |
| Mounting Type | Through Hole | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Manufacturer Standard Lead Time | 5 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Inductance | 14mH | Height - Seated (Max) | 1.225" (31.12mm) |
| Frequency Range | 20kHz ~ 200kHz | Energy Time (E.T.) | 2000V µS |
| Detailed Description | 110A Current Sense Transformer 20kHz ~ 200kHz 580 mOhm Max 14mH Through Hole | DC Resistance (DCR) | 580 mOhm Max |
| Current Ratio | 100:1 | Current Rating | 110A |
