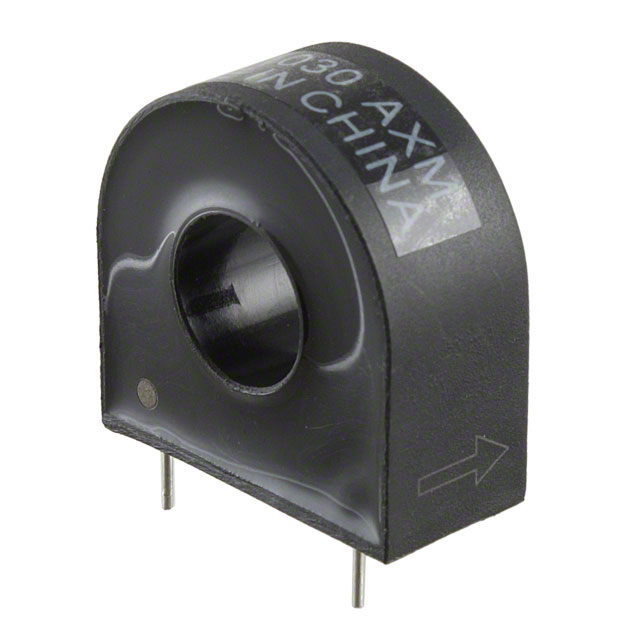

CST-1030
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy CST-1030 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy CST-1030 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | CST-1030 |
|---|---|
| Manufacturer | Triad Magnetics |
| Description | CURR SENSE XFMR 30A T/H |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 50 pcs | |
|---|---|---|---|---|---|
| $3.376 | $2.623 | $2.552 | $2.198 | ||
| 100 pcs | 250 pcs | 500 pcs | 1000 pcs | ||
| $2.098 | $2.056 | $2.02 | $1.985 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | CST-1030 | Manufacturer | Triad Magnetics |
|---|---|---|---|
| Description | CURR SENSE XFMR 30A T/H | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 19927 pcs | Data sheet | CST-1030 |
| Category | Transformers | Weight | 0.066 lb (29.94g) |
| Type | Non-Invasive (Solid Core) | Turns Ratio - Primary:Secondary | - |
| Termination Style | PC Pin | Size / Dimension | 1.189" L x 0.563" W (30.20mm x 14.30mm) |
| Series | CST | Ratings | - |
| Packaging | Bulk | Other Names | 237-1618 |
| Mounting Type | Through Hole | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Manufacturer Standard Lead Time | 16 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Height - Seated (Max) | 1.189" (30.20mm) | Frequency Range | 50/60Hz |
| Energy Time (E.T.) | - | Detailed Description | 30A Current Sense Transformer 50/60Hz 46 Ohm Through Hole |
| DC Resistance (DCR) | 46 Ohm | Current Ratio | 1000:1 |
| Current Rating | 30A |
