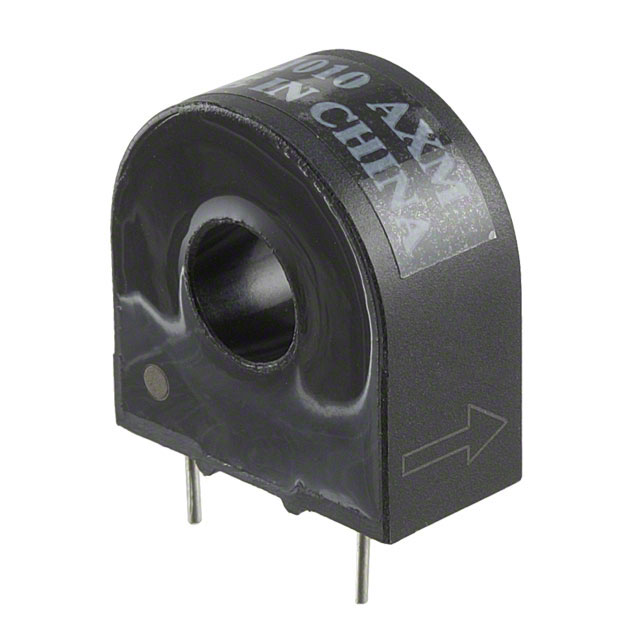

CST-1010
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy CST-1010 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy CST-1010 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | CST-1010 |
|---|---|
| Manufacturer | Triad Magnetics |
| Description | CURR SENSE XFMR 10A T/H |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 50 pcs | |
|---|---|---|---|---|---|
| $2.585 | $1.965 | $1.914 | $1.758 | ||
| 100 pcs | 250 pcs | 500 pcs | 1000 pcs | ||
| $1.655 | $1.603 | $1.552 | $1.50 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | CST-1010 | Manufacturer | Triad Magnetics |
|---|---|---|---|
| Description | CURR SENSE XFMR 10A T/H | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 24066 pcs | Data sheet | CST-1010 |
| Category | Transformers | Weight | 0.044 lb (19.96g) |
| Type | Non-Invasive (Solid Core) | Turns Ratio - Primary:Secondary | - |
| Termination Style | PC Pin | Size / Dimension | 0.925" L x 0.472" W (23.50mm x 12.00mm) |
| Series | CST | Ratings | - |
| Packaging | Bulk | Other Names | 237-1622 |
| Mounting Type | Through Hole | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Manufacturer Standard Lead Time | 16 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Height - Seated (Max) | 0.976" (24.80mm) | Frequency Range | 50/60Hz |
| Energy Time (E.T.) | - | Detailed Description | 10A Current Sense Transformer 50/60Hz 40 Ohm Through Hole |
| DC Resistance (DCR) | 40 Ohm | Current Ratio | 1000:1 |
| Current Rating | 10A |
