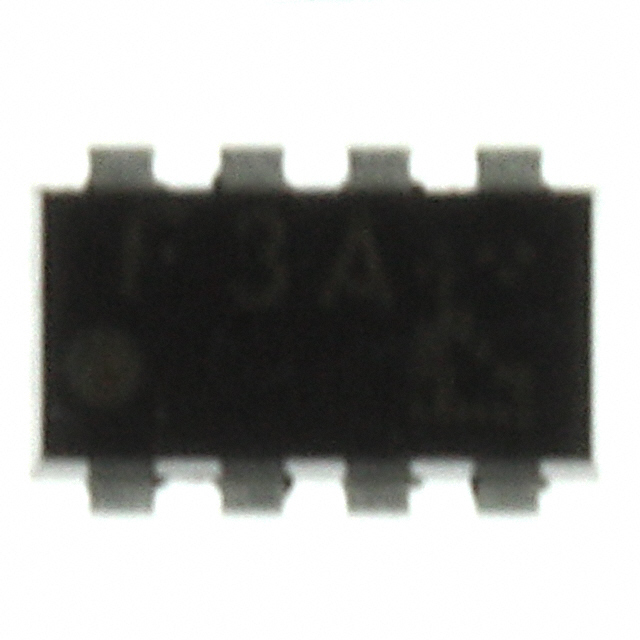

TPCF8101(TE85L,F,M
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy TPCF8101(TE85L,F,M with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy TPCF8101(TE85L,F,M with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | TPCF8101(TE85L,F,M |
|---|---|
| Manufacturer | Toshiba Semiconductor and Storage |
| Description | MOSFET P-CH 12V 6A VS-8 |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | Get a quote | ||||
- Product parameter
- Data sheet
Product parameter
| Part Number | TPCF8101(TE85L,F,M | Manufacturer | Toshiba Semiconductor and Storage |
|---|---|---|---|
| Description | MOSFET P-CH 12V 6A VS-8 | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 5436 pcs | Data sheet | Mosfets Prod GuideTPCF8101 |
| Category | Discrete Semiconductor Products | Vgs(th) (Max) @ Id | 1.2V @ 200µA |
| Vgs (Max) | ±8V | Technology | MOSFET (Metal Oxide) |
| Supplier Device Package | VS-8 (2.9x1.5) | Series | U-MOSIII |
| Rds On (Max) @ Id, Vgs | 28 mOhm @ 3A, 4.5V | Power Dissipation (Max) | 700mW (Ta) |
| Packaging | Cut Tape (CT) | Package / Case | 8-SMD, Flat Lead |
| Other Names | TPCF8101(TE85LFMCT TPCF8101FCT TPCF8101FCT-ND |
Operating Temperature | 150°C (TJ) |
| Mounting Type | Surface Mount | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Input Capacitance (Ciss) (Max) @ Vds | 1600pF @ 10V |
| Gate Charge (Qg) (Max) @ Vgs | 18nC @ 5V | FET Type | P-Channel |
| FET Feature | - | Drive Voltage (Max Rds On, Min Rds On) | 1.8V, 4.5V |
| Drain to Source Voltage (Vdss) | 12V | Detailed Description | P-Channel 12V 6A (Ta) 700mW (Ta) Surface Mount VS-8 (2.9x1.5) |
| Current - Continuous Drain (Id) @ 25°C | 6A (Ta) |
