TLP383(D4BLLTL,E

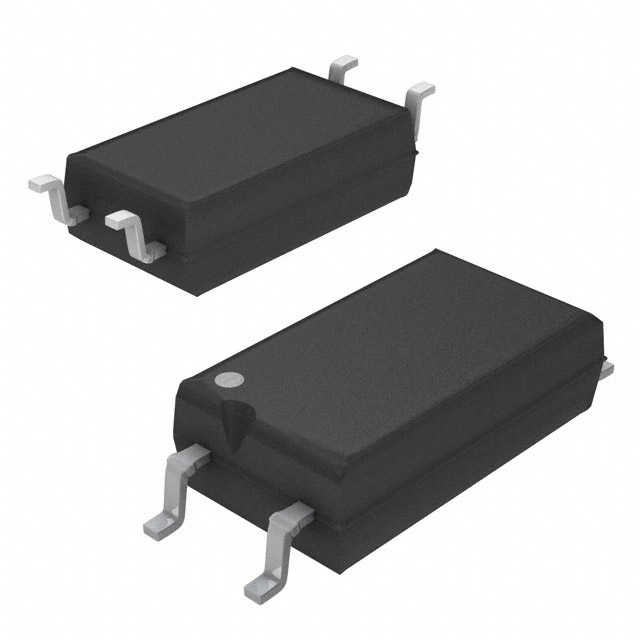

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy TLP383(D4BLLTL,E with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy TLP383(D4BLLTL,E with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | TLP383(D4BLLTL,E |
|---|---|
| Manufacturer | Toshiba Semiconductor and Storage |
| Description | OPTOISO 5KV TRANSISTOR SO6L |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 100 pcs | |
|---|---|---|---|---|---|
| $0.267 | $0.192 | $0.157 | $0.126 | ||
| 250 pcs | 500 pcs | 1000 pcs | |||
| $0.106 | $0.09 | $0.071 | |||
- Product parameter
- Data sheet
Product parameter
| Part Number | TLP383(D4BLLTL,E | Manufacturer | Toshiba Semiconductor and Storage |
|---|---|---|---|
| Description | OPTOISO 5KV TRANSISTOR SO6L | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 323365 pcs | Data sheet | TLP383 |
| Category | Isolators | Voltage - Output (Max) | 80V |
| Voltage - Isolation | 5000Vrms | Voltage - Forward (Vf) (Typ) | 1.25V |
| Vce Saturation (Max) | 300mV | Turn On / Turn Off Time (Typ) | 3µs, 3µs |
| Supplier Device Package | 6-SO | Series | - |
| Rise / Fall Time (Typ) | 2µs, 3µs | Packaging | Cut Tape (CT) |
| Package / Case | 6-SOIC (0.173", 4.40mm Width), 4 Leads | Output Type | Transistor |
| Other Names | TLP383(D4BLLTLECT | Operating Temperature | -55°C ~ 125°C |
| Number of Channels | 1 | Mounting Type | Surface Mount |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Input Type | DC | Detailed Description | Optoisolator Transistor Output 5000Vrms 1 Channel 6-SO |
| Current Transfer Ratio (Min) | 200% @ 500µA | Current Transfer Ratio (Max) | 400% @ 500µA |
| Current - Output / Channel | 50mA | Current - DC Forward (If) (Max) | 50mA |
