TK6R7P06PL,RQ

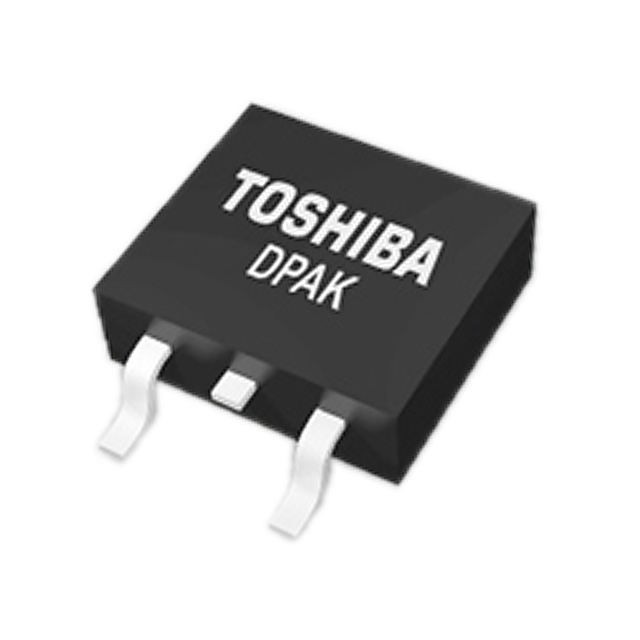

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy TK6R7P06PL,RQ with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy TK6R7P06PL,RQ with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | TK6R7P06PL,RQ |
|---|---|
| Manufacturer | Toshiba Semiconductor and Storage |
| Description | MOSFET N-CHANNEL 60V 46A DPAK |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 100 pcs | 500 pcs | 1000 pcs |
|---|---|---|---|---|---|
| $0.398 | $0.352 | $0.278 | $0.216 | $0.17 | |
- Product parameter
- Data sheet
Product parameter
| Part Number | TK6R7P06PL,RQ | Manufacturer | Toshiba Semiconductor and Storage |
|---|---|---|---|
| Description | MOSFET N-CHANNEL 60V 46A DPAK | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 141352 pcs | Data sheet | TK6R7P06PL |
| Category | Discrete Semiconductor Products | Vgs(th) (Max) @ Id | 2.5V @ 300µA |
| Vgs (Max) | ±20V | Technology | MOSFET (Metal Oxide) |
| Supplier Device Package | DPAK | Series | U-MOSIX-H |
| Rds On (Max) @ Id, Vgs | 6.7 mOhm @ 23A, 10V | Power Dissipation (Max) | 66W (Tc) |
| Packaging | Original-Reel® | Package / Case | TO-252-3, DPak (2 Leads + Tab), SC-63 |
| Other Names | TK6R7P06PLRQDKR | Operating Temperature | 175°C |
| Mounting Type | Surface Mount | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Input Capacitance (Ciss) (Max) @ Vds | 1990pF @ 30V |
| Gate Charge (Qg) (Max) @ Vgs | 26nC @ 10V | FET Type | N-Channel |
| FET Feature | - | Drive Voltage (Max Rds On, Min Rds On) | 4.5V, 10V |
| Drain to Source Voltage (Vdss) | 60V | Detailed Description | N-Channel 60V 46A (Tc) 66W (Tc) Surface Mount DPAK |
| Current - Continuous Drain (Id) @ 25°C | 46A (Tc) |
