TK5Q60W,S1VQ

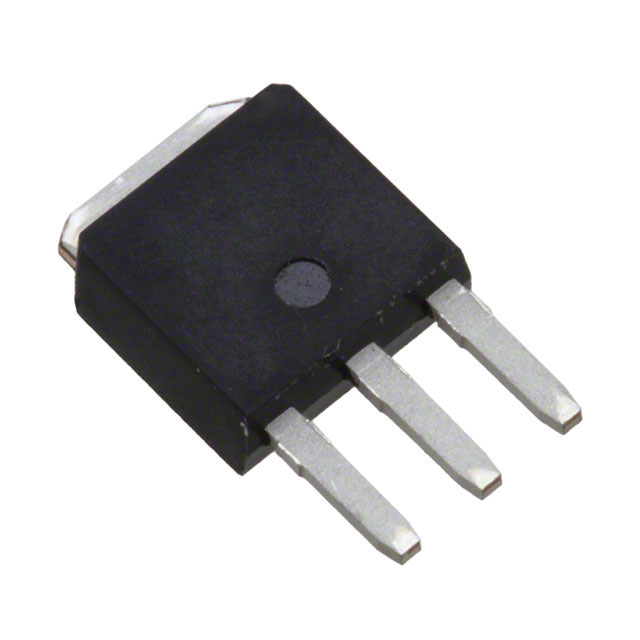

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy TK5Q60W,S1VQ with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy TK5Q60W,S1VQ with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | TK5Q60W,S1VQ |
|---|---|
| Manufacturer | Toshiba Semiconductor and Storage |
| Description | MOSFET N CH 600V 5.4A IPAK |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 75 pcs | 150 pcs | 525 pcs | 1050 pcs |
|---|---|---|---|---|---|
| $0.694 | $0.559 | $0.503 | $0.391 | $0.324 | |
- Product parameter
- Data sheet
Product parameter
| Part Number | TK5Q60W,S1VQ | Manufacturer | Toshiba Semiconductor and Storage |
|---|---|---|---|
| Description | MOSFET N CH 600V 5.4A IPAK | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 62843 pcs | Data sheet | TK5Q60W |
| Category | Discrete Semiconductor Products | Vgs(th) (Max) @ Id | 3.7V @ 270µA |
| Vgs (Max) | ±30V | Technology | MOSFET (Metal Oxide) |
| Supplier Device Package | I-PAK | Series | DTMOSIV |
| Rds On (Max) @ Id, Vgs | 900 mOhm @ 2.7A, 10V | Power Dissipation (Max) | 60W (Tc) |
| Packaging | Tube | Package / Case | TO-251-3 Stub Leads, IPak |
| Other Names | TK5Q60W,S1VQ(S TK5Q60WS1VQ |
Operating Temperature | 150°C (TJ) |
| Mounting Type | Through Hole | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Input Capacitance (Ciss) (Max) @ Vds | 380pF @ 300V |
| Gate Charge (Qg) (Max) @ Vgs | 10.5nC @ 10V | FET Type | N-Channel |
| FET Feature | Super Junction | Drive Voltage (Max Rds On, Min Rds On) | 10V |
| Drain to Source Voltage (Vdss) | 600V | Detailed Description | N-Channel 600V 5.4A (Ta) 60W (Tc) Through Hole I-PAK |
| Current - Continuous Drain (Id) @ 25°C | 5.4A (Ta) |
