TK5A50D(STA4,Q,M)

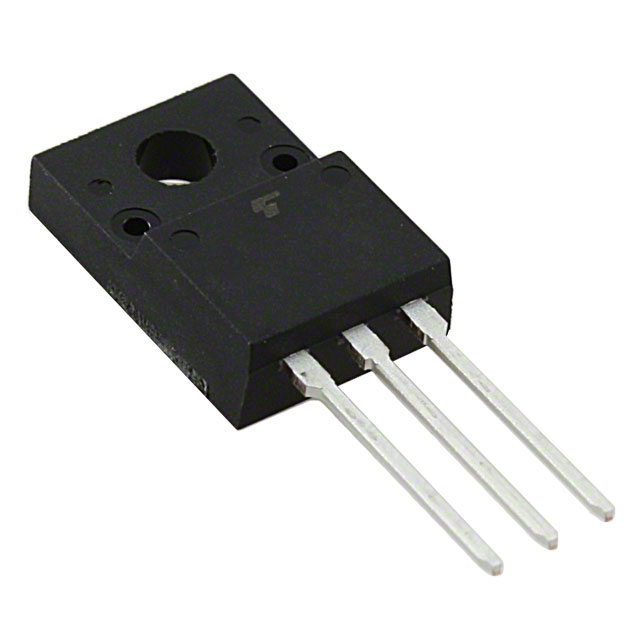

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy TK5A50D(STA4,Q,M) with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy TK5A50D(STA4,Q,M) with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | TK5A50D(STA4,Q,M) |
|---|---|
| Manufacturer | Toshiba Semiconductor and Storage |
| Description | MOSFET N-CH 500V 5A TO220SIS |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 50 pcs | ||||
|---|---|---|---|---|---|
| $0.409 | |||||
- Product parameter
- Data sheet
Product parameter
| Part Number | TK5A50D(STA4,Q,M) | Manufacturer | Toshiba Semiconductor and Storage |
|---|---|---|---|
| Description | MOSFET N-CH 500V 5A TO220SIS | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 89333 pcs | Data sheet | TK5A50D |
| Category | Discrete Semiconductor Products | Vgs(th) (Max) @ Id | 4.4V @ 1mA |
| Vgs (Max) | ±30V | Technology | MOSFET (Metal Oxide) |
| Supplier Device Package | TO-220SIS | Series | π-MOSVII |
| Rds On (Max) @ Id, Vgs | 1.5 Ohm @ 2.5A, 10V | Power Dissipation (Max) | 35W (Tc) |
| Packaging | Tube | Package / Case | TO-220-3 Full Pack |
| Operating Temperature | 150°C (TJ) | Mounting Type | Through Hole |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Input Capacitance (Ciss) (Max) @ Vds | 490pF @ 25V | Gate Charge (Qg) (Max) @ Vgs | 11nC @ 10V |
| FET Type | N-Channel | FET Feature | - |
| Drive Voltage (Max Rds On, Min Rds On) | 10V | Drain to Source Voltage (Vdss) | 500V |
| Detailed Description | N-Channel 500V 5A (Ta) 35W (Tc) Through Hole TO-220SIS | Current - Continuous Drain (Id) @ 25°C | 5A (Ta) |
