TK100L60W,VQ

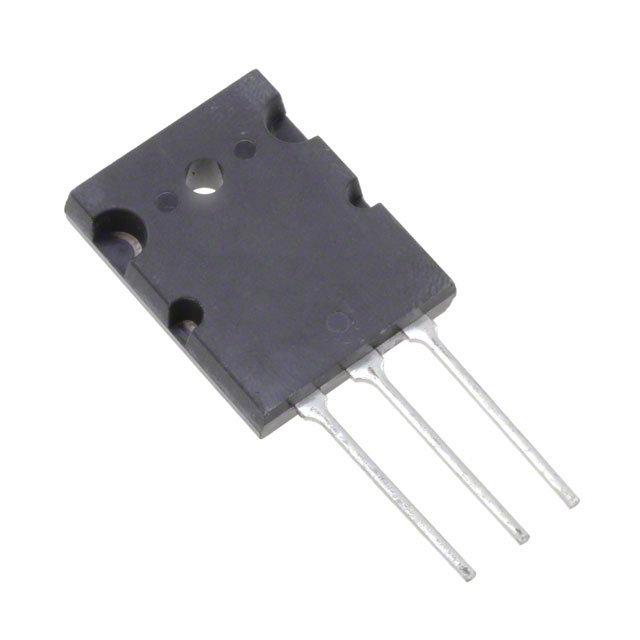

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy TK100L60W,VQ with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy TK100L60W,VQ with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | TK100L60W,VQ |
|---|---|
| Manufacturer | Toshiba Semiconductor and Storage |
| Description | MOSFET N CH 600V 100A TO3P(L) |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 100 pcs | ||
|---|---|---|---|---|---|
| $13.202 | $12.212 | $10.429 | |||
- Product parameter
- Data sheet
Product parameter
| Part Number | TK100L60W,VQ | Manufacturer | Toshiba Semiconductor and Storage |
|---|---|---|---|
| Description | MOSFET N CH 600V 100A TO3P(L) | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 2920 pcs | Data sheet | TK100L60W |
| Category | Discrete Semiconductor Products | Vgs(th) (Max) @ Id | 3.7V @ 5mA |
| Vgs (Max) | ±30V | Technology | MOSFET (Metal Oxide) |
| Supplier Device Package | TO-3P(L) | Series | DTMOSIV |
| Rds On (Max) @ Id, Vgs | 18 mOhm @ 50A, 10V | Power Dissipation (Max) | 797W (Tc) |
| Packaging | Tube | Package / Case | TO-3PL |
| Other Names | TK100L60W,VQ(O TK100L60WVQ |
Operating Temperature | 150°C (TJ) |
| Mounting Type | Through Hole | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Input Capacitance (Ciss) (Max) @ Vds | 15000pF @ 30V |
| Gate Charge (Qg) (Max) @ Vgs | 360nC @ 10V | FET Type | N-Channel |
| FET Feature | Super Junction | Drive Voltage (Max Rds On, Min Rds On) | 10V |
| Drain to Source Voltage (Vdss) | 600V | Detailed Description | N-Channel 600V 100A (Ta) 797W (Tc) Through Hole TO-3P(L) |
| Current - Continuous Drain (Id) @ 25°C | 100A (Ta) |
