TB6556FG,8,EL,DRY

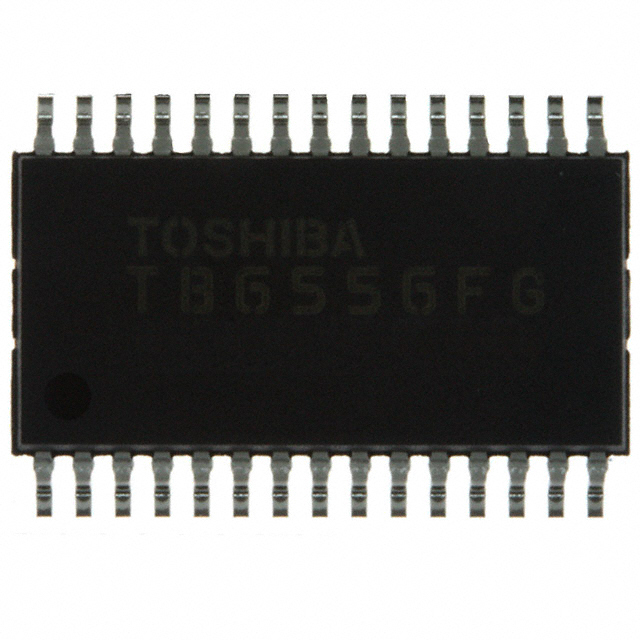

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy TB6556FG,8,EL,DRY with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy TB6556FG,8,EL,DRY with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | TB6556FG,8,EL,DRY |
|---|---|
| Manufacturer | Toshiba Semiconductor and Storage |
| Description | IC MOTOR CONTROLLER PAR 30SSOP |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | Get a quote | ||||
- Product parameter
- Data sheet
Product parameter
| Part Number | TB6556FG,8,EL,DRY | Manufacturer | Toshiba Semiconductor and Storage |
|---|---|---|---|
| Description | IC MOTOR CONTROLLER PAR 30SSOP | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 3994 pcs | Data sheet | TB6556FG |
| Category | Integrated Circuits (ICs) | Voltage - Supply | 6 V ~ 10 V |
| Voltage - Load | - | Technology | Bi-CMOS |
| Supplier Device Package | 30-SSOP | Step Resolution | - |
| Series | - | Packaging | Cut Tape (CT) |
| Package / Case | 30-BSOP (0.295", 7.50mm Width) | Output Configuration | Pre-Driver - Half Bridge (3) |
| Other Names | TB6556FG8ELDRYCT TB6556FGCT TB6556FGCT-ND TB6556FGELDRYCT TB6556FGELDRYCT-ND TB6556FGOELDRY |
Operating Temperature | -30°C ~ 115°C (TA) |
| Mounting Type | Surface Mount | Motor Type - Stepper | - |
| Motor Type - AC, DC | Brushless DC (BLDC) | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Interface | Parallel |
| Function | Controller - Commutation, Direction Management | Detailed Description | Motor Driver Bi-CMOS Parallel 30-SSOP |
| Current - Output | - | Base Part Number | TB6556 |
| Applications | Fan Controller |
