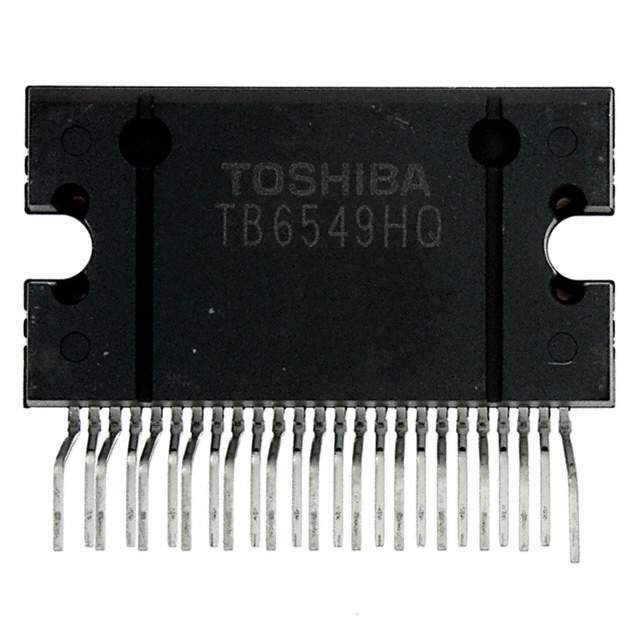

TB6549HQ(O)
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy TB6549HQ(O) with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy TB6549HQ(O) with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | TB6549HQ(O) |
|---|---|
| Manufacturer | Toshiba Semiconductor and Storage |
| Description | IC MOTOR DRIVER PAR 25HZIP |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | Get a quote | ||||
- Product parameter
- Data sheet
Product parameter
| Part Number | TB6549HQ(O) | Manufacturer | Toshiba Semiconductor and Storage |
|---|---|---|---|
| Description | IC MOTOR DRIVER PAR 25HZIP | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 4073 pcs | Data sheet | TB6549FG,PG,HQ |
| Category | Integrated Circuits (ICs) | Voltage - Supply | 10 V ~ 27 V |
| Voltage - Load | 10 V ~ 27 V | Technology | Bi-CMOS |
| Supplier Device Package | 25-HZIP | Step Resolution | - |
| Series | - | Packaging | Tube |
| Package / Case | 25-SIP Formed Leads | Output Configuration | Half Bridge (2) |
| Other Names | TB6549HQ TB6549HQ-ND TB6549HQO |
Operating Temperature | -20°C ~ 85°C (TA) |
| Mounting Type | Through Hole | Motor Type - Stepper | - |
| Motor Type - AC, DC | Brushed DC | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Interface | PWM, Serial |
| Function | Driver - Fully Integrated, Control and Power Stage | Detailed Description | Motor Driver Bi-CMOS PWM, Serial 25-HZIP |
| Current - Output | 4.5A | Base Part Number | TB6549 |
| Applications | General Purpose |
