SSM5G10TU(TE85L,F)

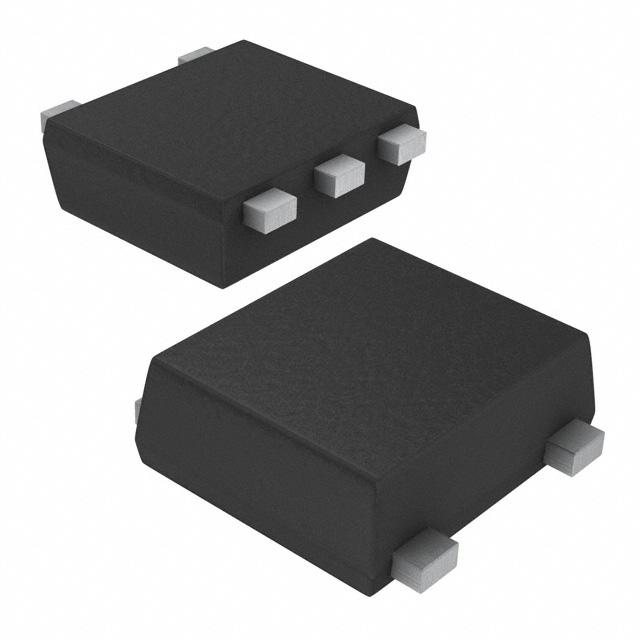

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy SSM5G10TU(TE85L,F) with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy SSM5G10TU(TE85L,F) with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | SSM5G10TU(TE85L,F) |
|---|---|
| Manufacturer | Toshiba Semiconductor and Storage |
| Description | MOSFET P-CH 20V 1.5A UFV |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 100 pcs | 500 pcs | 1000 pcs |
|---|---|---|---|---|---|
| $0.239 | $0.20 | $0.15 | $0.11 | $0.085 | |
- Product parameter
- Data sheet
Product parameter
| Part Number | SSM5G10TU(TE85L,F) | Manufacturer | Toshiba Semiconductor and Storage |
|---|---|---|---|
| Description | MOSFET P-CH 20V 1.5A UFV | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 242768 pcs | Data sheet | Mosfets Prod GuideSSM5G10TU |
| Category | Discrete Semiconductor Products | Vgs(th) (Max) @ Id | 1V @ 1mA |
| Vgs (Max) | ±8V | Technology | MOSFET (Metal Oxide) |
| Supplier Device Package | UFV | Series | U-MOSIII |
| Rds On (Max) @ Id, Vgs | 213 mOhm @ 1A, 4V | Power Dissipation (Max) | 500mW (Ta) |
| Packaging | Cut Tape (CT) | Package / Case | 6-SMD (5 Leads), Flat Lead |
| Other Names | SSM5G10TU(TE85LF)CT | Operating Temperature | 150°C (TJ) |
| Mounting Type | Surface Mount | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Input Capacitance (Ciss) (Max) @ Vds | 250pF @ 10V |
| Gate Charge (Qg) (Max) @ Vgs | 6.4nC @ 4V | FET Type | P-Channel |
| FET Feature | Schottky Diode (Isolated) | Drive Voltage (Max Rds On, Min Rds On) | 1.8V, 4V |
| Drain to Source Voltage (Vdss) | 20V | Detailed Description | P-Channel 20V 1.5A (Ta) 500mW (Ta) Surface Mount UFV |
| Current - Continuous Drain (Id) @ 25°C | 1.5A (Ta) |
