54-00036
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 54-00036 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 54-00036 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 54-00036 |
|---|---|
| Manufacturer | Tensility International Corporation |

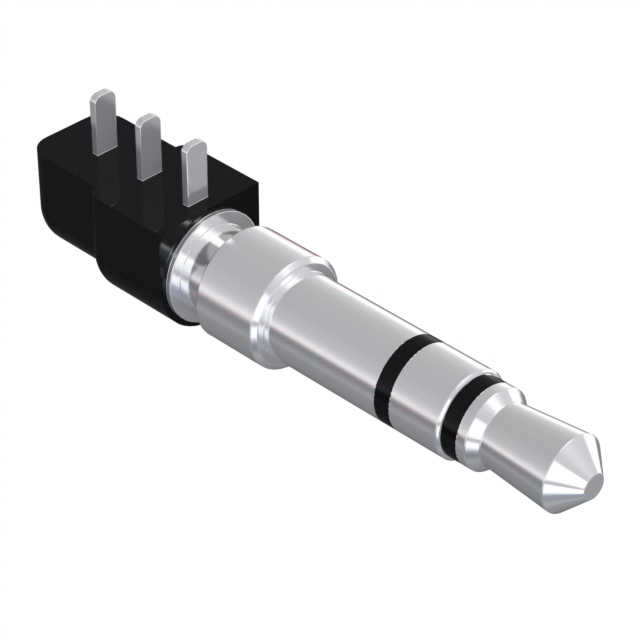

| Description | CONN PLUG STEREO 3.5MM RA 3COND |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 50 pcs | 100 pcs |
|---|---|---|---|---|---|
| $0.904 | $0.821 | $0.771 | $0.738 | $0.704 | |
| 250 pcs | 500 pcs | 1000 pcs | 2500 pcs | ||
| $0.637 | $0.587 | $0.503 | $0.469 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | 54-00036 | Manufacturer | Tensility International Corporation |
|---|---|---|---|
| Description | CONN PLUG STEREO 3.5MM RA 3COND | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 81829 pcs | Data sheet | 54-00036 Datasheet |
| Category | Connectors, Interconnects | Voltage - Rated | - |
| Thread Size | - | Termination | Solder |
| Signal Lines | Stereo (3 Conductor, TRS) | Shielding | Unshielded |
| Series | - | Panel Hole Size | - |
| Packaging | Bulk | Other Names | 839-1240 |
| Operating Temperature | -25°C ~ 70°C | Number of Positions/Contacts | 3 Conductors, 3 Contacts |
| Mounting Type | Through Hole, Right Angle | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Mating Length/Depth | 0.551" (14.00mm) | Manufacturer Standard Lead Time | 15 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Internal Switch(s) | Does Not Contain Switch |
| Insulation Color | - | Industry Recognized Mating Diameter | 3.50mm (0.141", 1/8", Mini Plug) - Headphone |
| Includes | - | Housing Material | Polyamide (PA46), Nylon 4/6 |
| Gender | Male | Features | - |
| Detailed Description | 3.50mm (0.141", 1/8", Mini Plug) - Headphone Phone Plug Stereo (3 Conductor, TRS) Connector Solder | Contact Material - Plating | Nickel |
| Contact Material | Brass | Connector Type | Phone Plug |
| Cable Opening | - | Body Material | Brass |
| Body Color | Silver, Black | Actual Diameter | 0.138" (3.50mm) |
