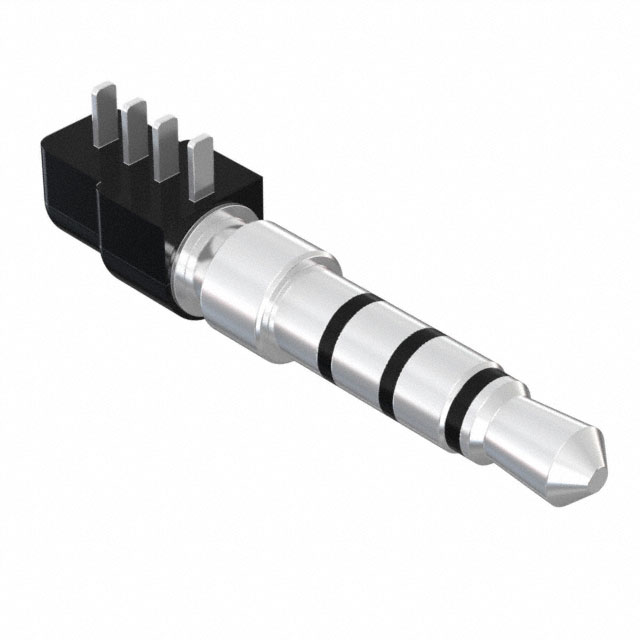

54-00035
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 54-00035 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 54-00035 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 54-00035 |
|---|---|
| Manufacturer | Tensility International Corporation |
| Description | CONN PLUG STEREO 3.5MM RA 4COND |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 50 pcs | 100 pcs |
|---|---|---|---|---|---|
| $1.163 | $1.118 | $1.025 | $0.978 | $0.931 | |
| 250 pcs | 500 pcs | 1000 pcs | 2500 pcs | ||
| $0.815 | $0.792 | $0.675 | $0.629 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | 54-00035 | Manufacturer | Tensility International Corporation |
|---|---|---|---|
| Description | CONN PLUG STEREO 3.5MM RA 4COND | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 48167 pcs | Data sheet | 54-00035 Datasheet |
| Category | Connectors, Interconnects | Voltage - Rated | - |
| Thread Size | - | Termination | Solder |
| Signal Lines | Stereo (4 Conductor, TRRS) | Shielding | Unshielded |
| Series | - | Panel Hole Size | - |
| Packaging | Bulk | Other Names | 839-1239 |
| Operating Temperature | -25°C ~ 70°C | Number of Positions/Contacts | 4 Conductors, 4 Contacts |
| Mounting Type | Through Hole, Right Angle | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Mating Length/Depth | 0.551" (14.00mm) | Manufacturer Standard Lead Time | 15 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Internal Switch(s) | Does Not Contain Switch |
| Insulation Color | - | Industry Recognized Mating Diameter | 3.50mm (0.141", 1/8", Mini Plug) - Headphone |
| Includes | - | Housing Material | Polyamide (PA46), Nylon 4/6 |
| Gender | Male | Features | - |
| Detailed Description | 3.50mm (0.141", 1/8", Mini Plug) - Headphone Phone Plug Stereo (4 Conductor, TRRS) Connector Solder | Contact Material - Plating | Nickel |
| Contact Material | Brass | Connector Type | Phone Plug |
| Cable Opening | - | Body Material | Brass |
| Body Color | Silver, Black | Actual Diameter | 0.138" (3.50mm) |
