TTC-5020

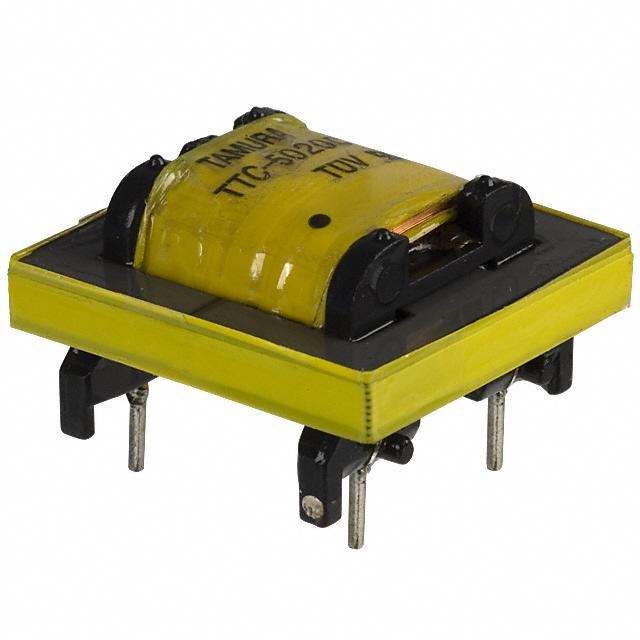

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy TTC-5020 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy TTC-5020 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | TTC-5020 |
|---|---|
| Manufacturer | Tamura |
| Description | TRANSFORMER COUPLING 600:301 OHM |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 50 pcs | |
|---|---|---|---|---|---|
| $1.676 | $1.359 | $1.099 | $1.029 | ||
| 100 pcs | 250 pcs | 500 pcs | 1000 pcs | ||
| $0.983 | $0.954 | $0.925 | $0.896 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | TTC-5020 | Manufacturer | Tamura |
|---|---|---|---|
| Description | TRANSFORMER COUPLING 600:301 OHM | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 34456 pcs | Data sheet | TTC-5020 |
| Category | Transformers | Weight | - |
| Voltage - Isolation | 1875VRMS @ 1 Second | Turns Ratio - Primary:Secondary | 1:1 |
| Transformer Type | Data/Voice Coupling | Termination Style | PC Pin |
| Size / Dimension | 0.886" L x 0.909" W (22.50mm x 23.10mm) | Series | TTC |
| Return Loss | - | Power Level | -20dB ~ 4dB |
| Packaging | Bulk | Other Names | MT7236 TTC-5020-ND TTC-5020C TTC5020 |
| Operating Temperature | - | Mounting Type | Through Hole |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Manufacturer Standard Lead Time | 26 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Insertion Loss | 3.75dB Max @ 1kHz |
| Impedance - Secondary (Ohms) | 301 | Impedance - Primary (Ohms) | 600 |
| Height - Seated (Max) | 0.543" (13.80mm) | Frequency Response | ±1dB ~ ±4dB |
| Frequency Range | 300Hz ~ 3.5kHz | DC Resistance (DCR) - Secondary | 152 Ohm |
| DC Resistance (DCR) - Primary | 152 Ohm | Approvals | CSA-C22.2 No. 950-95, UL1950 |
