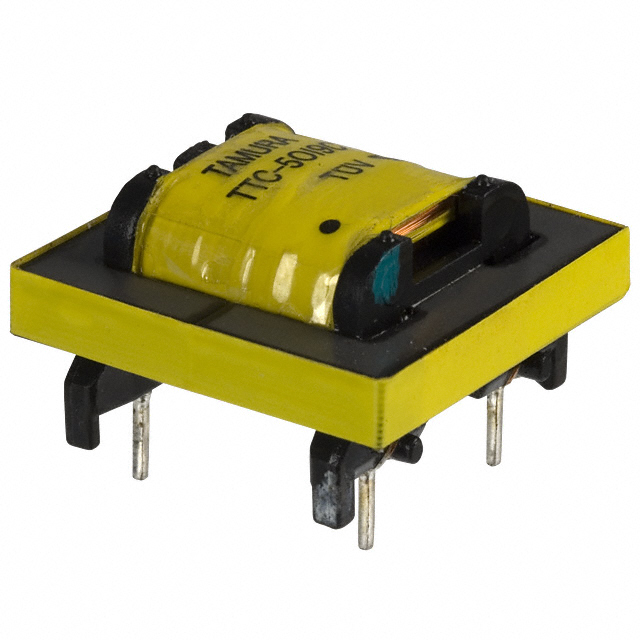

TTC-5019
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy TTC-5019 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy TTC-5019 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | TTC-5019 |
|---|---|
| Manufacturer | Tamura |
| Description | TRANSFORMER COUPLING 600:260 OHM |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | Get a quote | ||||
- Product parameter
- Data sheet
Product parameter
| Part Number | TTC-5019 | Manufacturer | Tamura |
|---|---|---|---|
| Description | TRANSFORMER COUPLING 600:260 OHM | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 5849 pcs | Data sheet | TTC-5019 |
| Category | Transformers | Weight | - |
| Voltage - Isolation | 1875VRMS @ 1 Second | Turns Ratio - Primary:Secondary | 1:1 |
| Transformer Type | Data/Voice Coupling | Termination Style | PC Pin |
| Size / Dimension | 0.886" L x 0.909" W (22.50mm x 23.10mm) | Series | TTC |
| Return Loss | 8dB Min @ 200Hz ~ 4kHz | Power Level | - |
| Packaging | Bulk | Other Names | MT7235 TTC-5019-ND TTC-5019C |
| Operating Temperature | - | Mounting Type | Through Hole |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Insertion Loss | 4dB Max @ 1kHz | Impedance - Secondary (Ohms) | 260 |
| Impedance - Primary (Ohms) | 600 | Height - Seated (Max) | 0.543" (13.80mm) |
| Frequency Response | ±2.5dB | Frequency Range | 200Hz ~ 4kHz |
| DC Resistance (DCR) - Secondary | 170 Ohm | DC Resistance (DCR) - Primary | 170 Ohm |
| Approvals | CSA-C22.2 No. 950-95, UL1950 |
