TTC-105-1

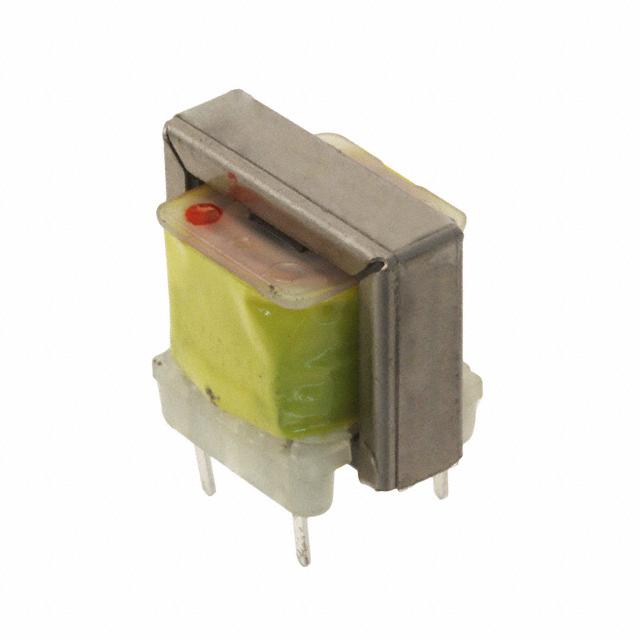

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy TTC-105-1 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy TTC-105-1 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | TTC-105-1 |
|---|---|
| Manufacturer | Tamura |
| Description | TRANSF TEL COUP 600:600CT 90MADC |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 50 pcs | |
|---|---|---|---|---|---|
| $2.06 | $1.566 | $1.525 | $1.401 | ||
| 100 pcs | 250 pcs | 500 pcs | 1000 pcs | ||
| $1.319 | $1.277 | $1.236 | $1.195 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | TTC-105-1 | Manufacturer | Tamura |
|---|---|---|---|
| Description | TRANSF TEL COUP 600:600CT 90MADC | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 31657 pcs | Data sheet | TTC-105-1 |
| Category | Transformers | Weight | - |
| Voltage - Isolation | 1500VRMS @ 1 Minute | Turns Ratio - Primary:Secondary | 1:1 |
| Transformer Type | Data/Voice Coupling | Termination Style | PC Pin |
| Size / Dimension | 0.839" L x 0.630" W (21.30mm x 16.00mm) | Series | TTC |
| Return Loss | - | Power Level | -45dB ~ 10dB |
| Packaging | Bulk | Other Names | MT11103 MT4135 T2114 TTC1051 |
| Operating Temperature | - | Mounting Type | Through Hole |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Manufacturer Standard Lead Time | 26 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Insertion Loss | 3dB Max @ 660Hz ~ 800Hz, 2.5dB Max @ 800Hz @ 3.5kHz |
| Impedance - Secondary (Ohms) | 600CT | Impedance - Primary (Ohms) | 600 |
| Height - Seated (Max) | 0.748" (19.00mm) | Frequency Response | -1dB ~ 0.7dB |
| Frequency Range | 660Hz ~ 3.5kHz | DC Resistance (DCR) - Secondary | 117 Ohm |
| DC Resistance (DCR) - Primary | 71 Ohm | Approvals | CSA-C22.2 No. 66-M1988, UL1459 |
