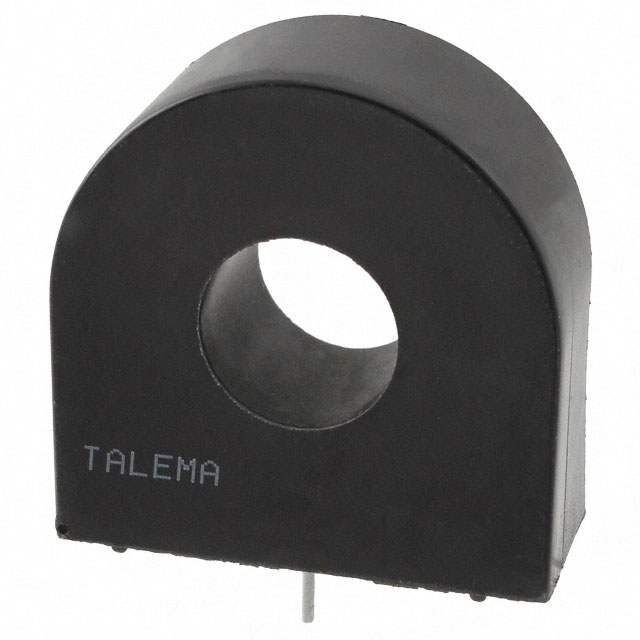

ACX-1150
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy ACX-1150 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy ACX-1150 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | ACX-1150 |
|---|---|
| Manufacturer | Talema |
| Description | CURR SENSE XFMR 2500:1 150A T/H |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 250 pcs | ||||
|---|---|---|---|---|---|
| $1.668 | |||||
- Product parameter
- Data sheet
Product parameter
| Part Number | ACX-1150 | Manufacturer | Talema |
|---|---|---|---|
| Description | CURR SENSE XFMR 2500:1 150A T/H | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 21263 pcs | Data sheet | ACX Series |
| Category | Transformers | Weight | - |
| Type | Non-Invasive (Solid Core) | Turns Ratio - Primary:Secondary | 2500:1 |
| Termination Style | PC Pin | Size / Dimension | 1.500" L x 0.626" W (38.10mm x 15.90mm) |
| Series | ACX | Ratings | - |
| Packaging | Tray | Other Names | 1295-1131 |
| Mounting Type | Through Hole | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Manufacturer Standard Lead Time | 18 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Height - Seated (Max) | 1.500" (38.10mm) | Frequency Range | 50Hz ~ 60Hz |
| Energy Time (E.T.) | - | Detailed Description | 150A 2500:1 Current Sense Transformer 50Hz ~ 60Hz Through Hole |
| DC Resistance (DCR) | - | Current Ratio | - |
| Current Rating | 150A |
