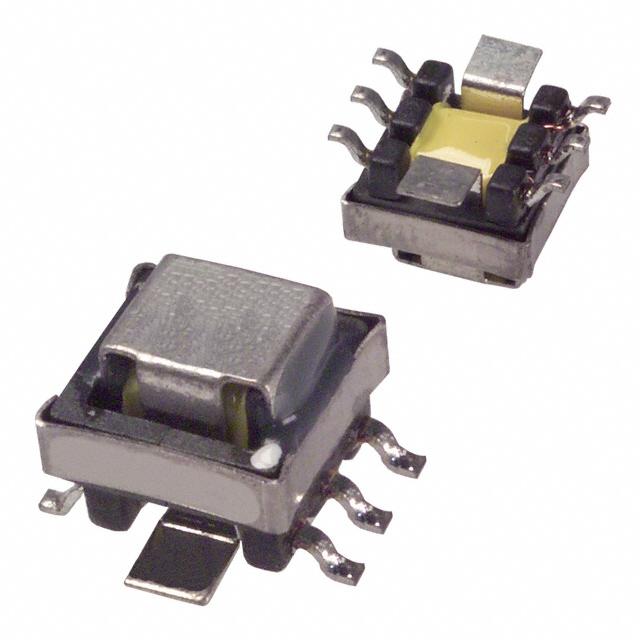

TCS-07
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy TCS-07 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy TCS-07 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | TCS-07 |
|---|---|
| Manufacturer | Tamura |
| Description | CURR SENSE XFMR 1:100 SMD |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | Get a quote | ||||
- Product parameter
- Data sheet
Product parameter
| Part Number | TCS-07 | Manufacturer | Tamura |
|---|---|---|---|
| Description | CURR SENSE XFMR 1:100 SMD | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 4401 pcs | Data sheet | TCS Series |
| Category | Transformers | Weight | - |
| Type | Invasive | Turns Ratio - Primary:Secondary | 1:100 |
| Termination Style | Gull Wing | Size / Dimension | 0.276" L x 0.331" W (7.00mm x 8.40mm) |
| Series | TCS | Ratings | - |
| Packaging | Cut Tape (CT) | Other Names | MT7295CT TCS07 |
| Mounting Type | Surface Mount | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Inductance | 2mH |
| Height - Seated (Max) | 0.205" (5.20mm) | Frequency Range | 250kHz Min |
| Energy Time (E.T.) | - | Detailed Description | 1:100 Current Sense Transformer 250kHz Min 6 mOhm Primary, 5.9 Ohm Secondary 2mH Surface Mount |
| DC Resistance (DCR) | 6 mOhm Primary, 5.9 Ohm Secondary | Current Ratio | - |
