CKP2520V3R3M-T

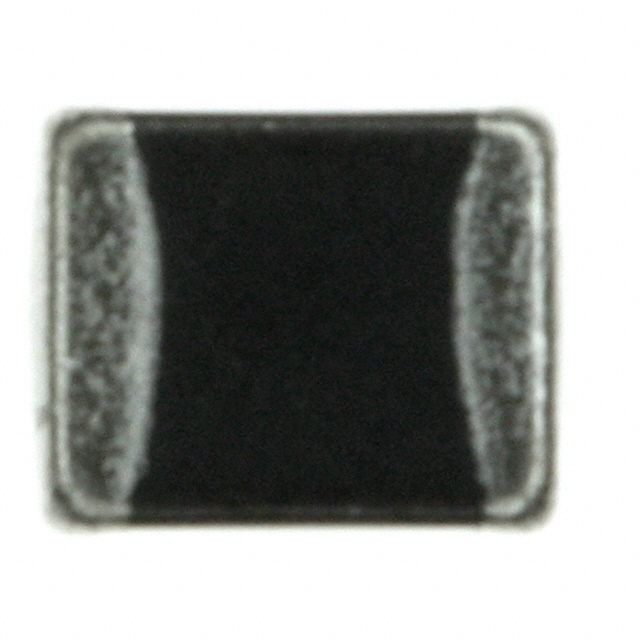

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy CKP2520V3R3M-T with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy CKP2520V3R3M-T with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | CKP2520V3R3M-T |
|---|---|
| Manufacturer | Taiyo Yuden |
| Description | FIXED IND 3.3UH 400MA 150 MOHM |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 50 pcs | |
|---|---|---|---|---|---|
| $0.147 | $0.13 | $0.12 | $0.102 | ||
| 100 pcs | 250 pcs | 500 pcs | 1000 pcs | ||
| $0.093 | $0.087 | $0.078 | $0.063 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | CKP2520V3R3M-T | Manufacturer | Taiyo Yuden |
|---|---|---|---|
| Description | FIXED IND 3.3UH 400MA 150 MOHM | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 319504 pcs | Data sheet | CKP, NM Series Power Inductor CatalogCKP2520V3R3M-T Spec Sheet |
| Category | Inductors, Coils, Chokes | Voltage - Breakdown | 1008 (2520 Metric) |
| Usage | Unshielded | Type | Multilayer |
| Size / Dimension | 0.098" L x 0.079" W (2.50mm x 2.00mm) | Series | CK |
| RoHS Status | Digi-Reel® | Ratings | - |
| Polarization | 1008 (2520 Metric) | Other Names | 587-2183-6 |
| Operating Temperature | -40°C ~ 85°C | Mounting Type | Surface Mount |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Manufacturer Standard Lead Time | 6 Weeks |
| Manufacturer Part Number | CKP2520V3R3M-T | Height - Seated (Max) | 0.039" (1.00mm) |
| Hardware Type | 3.3µH | Frequency - Test | - |
| Frequency - Self Resonant | 150 mOhm Max | Expanded Description | 3.3µH Unshielded Multilayer Inductor 400mA 150 mOhm Max 1008 (2520 Metric) |
| ESR (Equivalent Series Resistance) | ±20% | Diameter - Shoulder | - |
| Description | FIXED IND 3.3UH 400MA 150 MOHM | Delay Time | 1MHz |
| DC Resistance (DCR) | 400mA | Current Rating | 400mA |
| Current - Saturation | - |
