CKP2520M1R5M-T

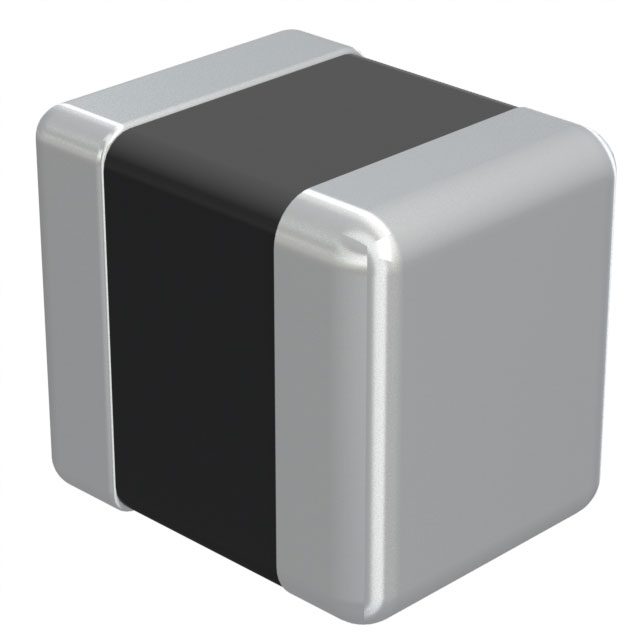

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy CKP2520M1R5M-T with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy CKP2520M1R5M-T with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | CKP2520M1R5M-T |
|---|---|
| Manufacturer | Taiyo Yuden |
| Description | FIXED IND 1.5UH 1.3A 90 MOHM SMD |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | |||
|---|---|---|---|---|---|
| $0.129 | $0.116 | ||||
- Product parameter
- Data sheet
Product parameter
| Part Number | CKP2520M1R5M-T | Manufacturer | Taiyo Yuden |
|---|---|---|---|
| Description | FIXED IND 1.5UH 1.3A 90 MOHM SMD | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 170747 pcs | Data sheet | CKP, NM Series, Power Inductor CatalogCKP2520M1R5M-T Spec Sheet |
| Category | Inductors, Coils, Chokes | Type | Multilayer |
| Tolerance | ±20% | Supplier Device Package | 1008 (2520 Metric) |
| Size / Dimension | 0.098" L x 0.079" W (2.50mm x 2.00mm) | Shielding | Unshielded |
| Series | CK, P Type | Ratings | - |
| Q @ Freq | - | Packaging | Cut Tape (CT) |
| Package / Case | 1008 (2520 Metric) | Other Names | 587-3073-1 |
| Operating Temperature | -40°C ~ 85°C | Mounting Type | Surface Mount |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material - Core | Ferrite |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Inductance Frequency - Test | 1MHz |
| Inductance | 1.5µH | Height - Seated (Max) | 0.039" (1.00mm) |
| Frequency - Self Resonant | - | Detailed Description | 1.5µH Unshielded Multilayer Inductor 1.3A 90 mOhm Max 1008 (2520 Metric) |
| DC Resistance (DCR) | 90 mOhm Max | Current Rating | 1.3A |
| Current - Saturation | - |
