AH316M245001-T

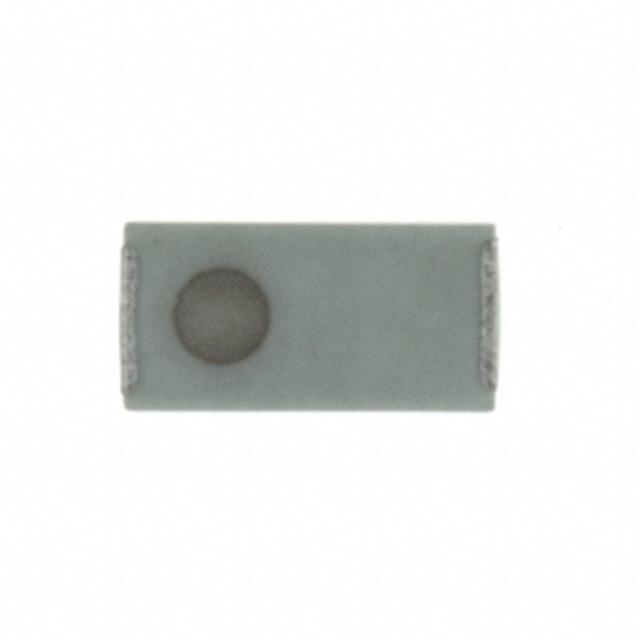

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy AH316M245001-T with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy AH316M245001-T with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | AH316M245001-T |
|---|---|
| Manufacturer | Taiyo Yuden |
| Description | RF ANT 2.4GHZ CHIP SOLDER SMD |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 3000 pcs | 6000 pcs | 15000 pcs | ||
|---|---|---|---|---|---|
| $0.199 | $0.189 | $0.182 | |||
- Product parameter
- Data sheet
Product parameter
| Part Number | AH316M245001-T | Manufacturer | Taiyo Yuden |
|---|---|---|---|
| Description | RF ANT 2.4GHZ CHIP SOLDER SMD | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 102952 pcs | Data sheet | AF, AH Series, Chip Antennas CatalogAF, AH Series Pkging |
| Category | RF/IF and RFID | VSWR | 3 |
| Termination | Solder | Series | - |
| Return Loss | - | Packaging | Tape & Reel (TR) |
| Other Names | 587-2200-2 AH316M245001T PG AH 316M245001-T PG AH316M245001-T PGAH316M245001-T |
Number of Bands | 1 |
| Mounting Type | Surface Mount | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Manufacturer Standard Lead Time | 8 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Ingress Protection | - | Height (Max) | 0.020" (0.50mm) |
| Gain | 1.9dBi | Frequency Range | 2.4GHz ~ 2.5GHz |
| Frequency Group | UHF (2 GHz ~ 3 GHz) | Frequency (Center/Band) | 2.4GHz |
| Features | - | Detailed Description | 2.4GHz Bluetooth, WLAN, Zigbee™ Chip RF Antenna 2.4GHz ~ 2.5GHz 1.9dBi Solder Surface Mount |
| Applications | Bluetooth, WLAN, Zigbee™ | Antenna Type | Chip |
