AH316M157501-T

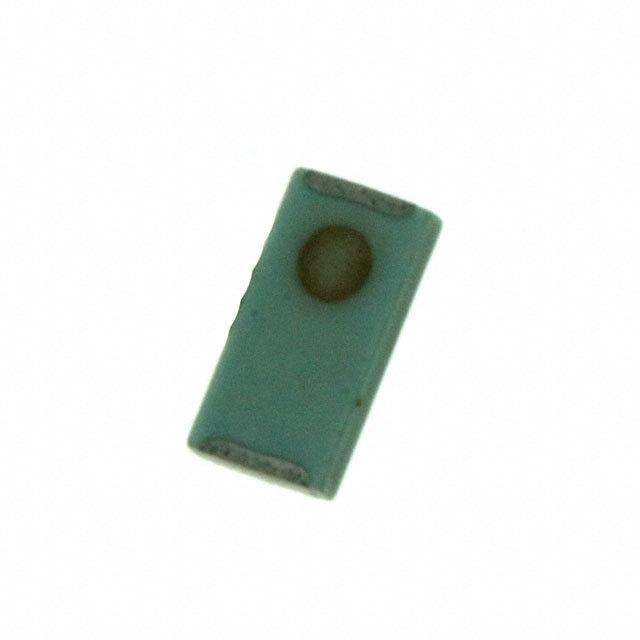

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy AH316M157501-T with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy AH316M157501-T with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | AH316M157501-T |
|---|---|
| Manufacturer | Taiyo Yuden |
| Description | RF ANT 1.575GHZ CHIP SOLDER SMD |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 100 pcs | |
|---|---|---|---|---|---|
| $0.552 | $0.49 | $0.443 | $0.388 | ||
| 250 pcs | 500 pcs | 1000 pcs | |||
| $0.34 | $0.301 | $0.237 | |||
- Product parameter
- Data sheet
Product parameter
| Part Number | AH316M157501-T | Manufacturer | Taiyo Yuden |
|---|---|---|---|
| Description | RF ANT 1.575GHZ CHIP SOLDER SMD | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 93363 pcs | Data sheet | AH316M157501 CharacteristicsAF, AH Series, Chip Antennas CatalogAH316M157501-T Spec SheetAF, AH Series Pkging |
| Category | RF/IF and RFID | VSWR | 3 |
| Termination | Solder | Series | - |
| Return Loss | - | Packaging | Cut Tape (CT) |
| Other Names | 587-2310-1 | Number of Bands | 1 |
| Mounting Type | Surface Mount | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Manufacturer Standard Lead Time | 8 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Ingress Protection | - | Height (Max) | 0.020" (0.50mm) |
| Gain | 2.4dBi, -0.6dBic | Frequency Range | 1.574GHz ~ 1.576GHz |
| Frequency Group | UHF (1 GHz ~ 2 GHz) | Frequency (Center/Band) | 1.575GHz |
| Features | - | Detailed Description | 1.575GHz GPS Chip RF Antenna 1.574GHz ~ 1.576GHz 2.4dBi, -0.6dBic Solder Surface Mount |
| Applications | GPS | Antenna Type | Chip |
