TSM6502CR RLG

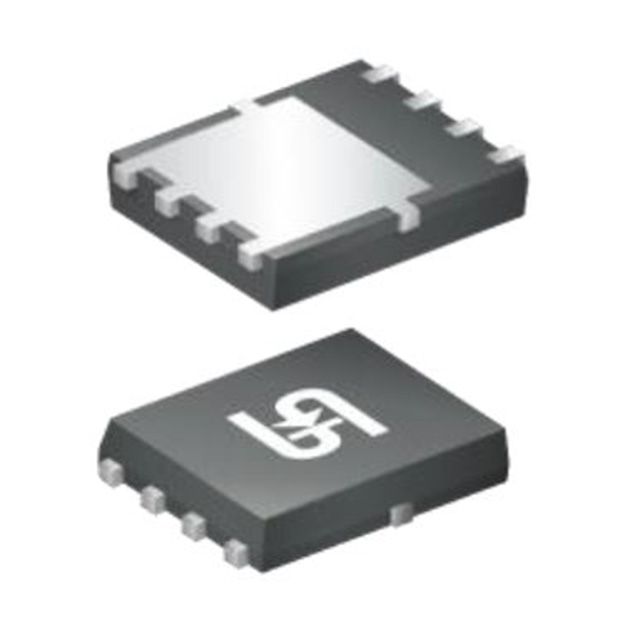

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy TSM6502CR RLG with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy TSM6502CR RLG with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | TSM6502CR RLG |
|---|---|
| Manufacturer | TSC (Taiwan Semiconductor) |
| Description | MOSFET N/P-CH 60V 24A/18A 8PDFN |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 100 pcs | 500 pcs | 1000 pcs |
|---|---|---|---|---|---|
| $0.322 | $0.281 | $0.217 | $0.161 | $0.128 | |
- Product parameter
- Data sheet
Product parameter
| Part Number | TSM6502CR RLG | Manufacturer | TSC (Taiwan Semiconductor) |
|---|---|---|---|
| Description | MOSFET N/P-CH 60V 24A/18A 8PDFN | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 159521 pcs | Data sheet | TSM6502CR |
| Category | Discrete Semiconductor Products | Vgs(th) (Max) @ Id | 2.5V @ 250µA |
| Supplier Device Package | 8-PDFN (5x6) | Series | - |
| Rds On (Max) @ Id, Vgs | 34 mOhm @ 5.4A, 10V, 68 mOhm @ 4A, 10V | Power - Max | 40W |
| Packaging | Original-Reel® | Package / Case | 8-PowerTDFN |
| Other Names | TSM6502CR RLGDKR TSM6502CR RLGDKR-ND TSM6502CRRLGDKR |
Operating Temperature | -55°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Manufacturer Standard Lead Time | 30 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Input Capacitance (Ciss) (Max) @ Vds | 1159pF @ 30V, 930pF @ 30V | Gate Charge (Qg) (Max) @ Vgs | 10.3nC @ 4.5V, 9.5nC @ 4.5V |
| FET Type | N and P-Channel | FET Feature | Standard |
| Drain to Source Voltage (Vdss) | 60V | Detailed Description | Mosfet Array N and P-Channel 60V 24A (Tc), 18A (Tc) 40W Surface Mount 8-PDFN (5x6) |
| Current - Continuous Drain (Id) @ 25°C | 24A (Tc), 18A (Tc) |
