Home > Products > Circuit Protection > TVS - Diodes > SA11CAHA0G

SA11CAHA0G

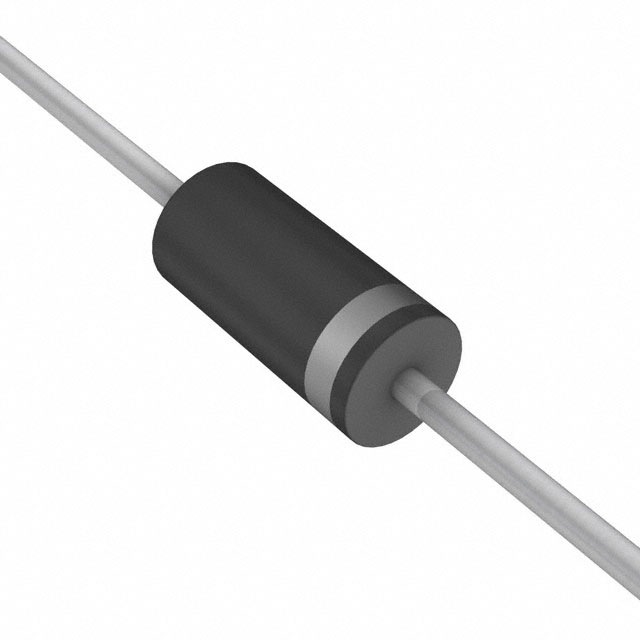

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy SA11CAHA0G with confidence from Components-World.HK, 1 Year Warranty

Request a Quote

Part Number	SA11CAHA0G
Manufacturer	TSC (Taiwan Semiconductor)
Description	TVS DIODE 11V 18.2V DO204AC
Lead Free Status / RoHS Status	Lead free / RoHS Compliant

~~In Stock~~ 397117 pcs
Reference Price (In US Dollars)	7500 pcs
Reference Price (In US Dollars)	$0.049

Product parameter
Data sheet

Product parameter

Part Number	SA11CAHA0G	Manufacturer	TSC (Taiwan Semiconductor)
Description	TVS DIODE 11V 18.2V DO204AC	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	397117 pcs	Data sheet	SA5.0 - SA170
Category	Circuit Protection	Voltage - Reverse Standoff (Typ)	11V
Voltage - Clamping (Max) @ Ipp	18.2V	Voltage - Breakdown (Min)	12.2V
Type	Zener	Supplier Device Package	DO-204AC (DO-15)
Series	Automotive, AEC-Q101, SA	Power Line Protection	No
Power - Peak Pulse	500W	Packaging	Tape & Box (TB)
Package / Case	DO-204AC, DO-15, Axial	Operating Temperature	-55°C ~ 175°C (TJ)
Mounting Type	Through Hole	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Manufacturer Standard Lead Time	15 Weeks	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Current - Peak Pulse (10/1000µs)	28A	Capacitance @ Frequency	-
Bidirectional Channels	1	Applications	Automotive
