Home > Products > Motors, Solenoids, Driver Boards/Modules > Stepper Motors > PD57-1-1160-TMCL

PD57-1-1160-TMCL

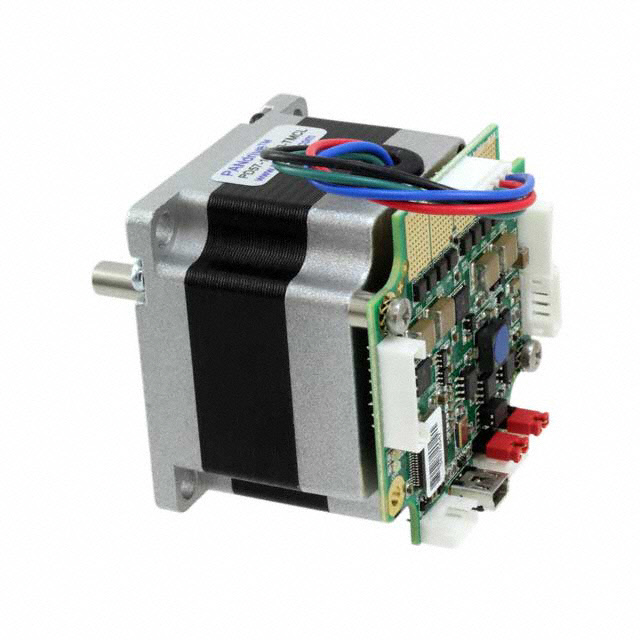

PD57-1-1160-TMCL
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy PD57-1-1160-TMCL with confidence from Components-World.HK, 1 Year Warranty

Request a Quote

Part Number PD57-1-1160-TMCL
Manufacturer TRINAMIC Motion Control GmbH
Description STEPPER MOTOR HYBRID BIPOLAR 48V
Lead Free Status / RoHS Status Lead free / RoHS Compliant
In Stock 322 pcs
Reference Price
(In US Dollars)		5 pcs
$98.338

Submit a Request For Quotation on quantities greater than those displayed.

Target Price:(USD)
Quantity:
Total:
$98.338

Product parameter

Part Number PD57-1-1160-TMCL Manufacturer TRINAMIC Motion Control GmbH
Description STEPPER MOTOR HYBRID BIPOLAR 48V Lead Free Status / RoHS Status Lead free / RoHS Compliant
Quantity Available 322 pcs Data sheet PD-1160 TMCL Firmware ManualPD-1160 Harware ManualPD-1160 Getting StartedPD-1160 Short Spec
Category Motors, Solenoids, Driver Boards/Modules Weight -
Voltage - Rated 48VDC Type Hybrid
Torque - Holding (oz-in / mNm) 77.89 / 550 Termination Style Wire Leads with Connector
Steps per Revolution 200 Step Angle 1.8°
Size / Dimension Square - 2.362" x 2.362" (60.00mm x 60.00mm) Series PANdrive™
Rotor Inertia - Other Names 1460-1110
30-0192
30-0271
Operating Temperature - NEMA Frame Size 24
Mounting Hole Spacing 1.856" (47.14mm) Moisture Sensitivity Level (MSL) 1 (Unlimited)
Manufacturer Standard Lead Time 8 Weeks Length - Shaft and Bearing 0.945" (24.00mm)
Lead Free Status / RoHS Status Lead free / RoHS Compliant Features Integrated Controller, Flatted Shaft
Diameter - Shaft 0.250" (6.35mm) Detailed Description Bipolar Stepper Motor Frame Size 24 200 Step 2.8A 48VDC
Current Rating 2.8A Coil Type Bipolar
Approvals - Accuracy -
