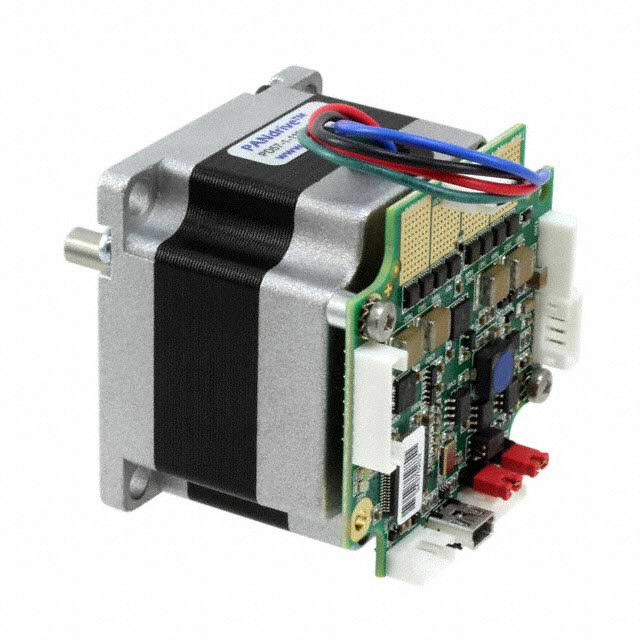

PD57-1-1160-CANOPEN
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy PD57-1-1160-CANOPEN with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy PD57-1-1160-CANOPEN with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | PD57-1-1160-CANOPEN |
|---|---|
| Manufacturer | TRINAMIC Motion Control GmbH |
| Description | STEPPER MOTOR HYBRID BIPOLAR 48V |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | ||
|---|---|---|---|---|---|
| $98.357 | $95.504 | $92.654 | |||
- Product parameter
- Data sheet
Product parameter
| Part Number | PD57-1-1160-CANOPEN | Manufacturer | TRINAMIC Motion Control GmbH |
|---|---|---|---|
| Description | STEPPER MOTOR HYBRID BIPOLAR 48V | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 327 pcs | Data sheet | PD-1160 Harware ManualTMCM-1140,60,80 CANopen ManualPD-1160 Getting StartedPD-1160 Short Spec |
| Category | Motors, Solenoids, Driver Boards/Modules | Weight | - |
| Voltage - Rated | 48VDC | Type | Hybrid |
| Torque - Holding (oz-in / mNm) | 77.89 / 550 | Termination Style | Wire Leads with Connector |
| Steps per Revolution | 200 | Step Angle | 1.8° |
| Size / Dimension | Square - 2.362" x 2.362" (60.00mm x 60.00mm) | Series | PANdrive™ |
| Rotor Inertia | - | Other Names | 1460-1114 30-0235 30-0275 |
| Operating Temperature | - | NEMA Frame Size | 24 |
| Mounting Hole Spacing | 1.856" (47.14mm) | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Manufacturer Standard Lead Time | 8 Weeks | Length - Shaft and Bearing | 0.945" (24.00mm) |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Features | Integrated Controller, Flatted Shaft |
| Diameter - Shaft | 0.250" (6.35mm) | Detailed Description | Bipolar Stepper Motor Frame Size 24 200 Step 2.8A 48VDC |
| Current Rating | 2.8A | Coil Type | Bipolar |
| Approvals | - | Accuracy | - |
