Home > Products > Power Supplies - External/Internal (Off-Board) > DC DC Converters > DPX1524WS05

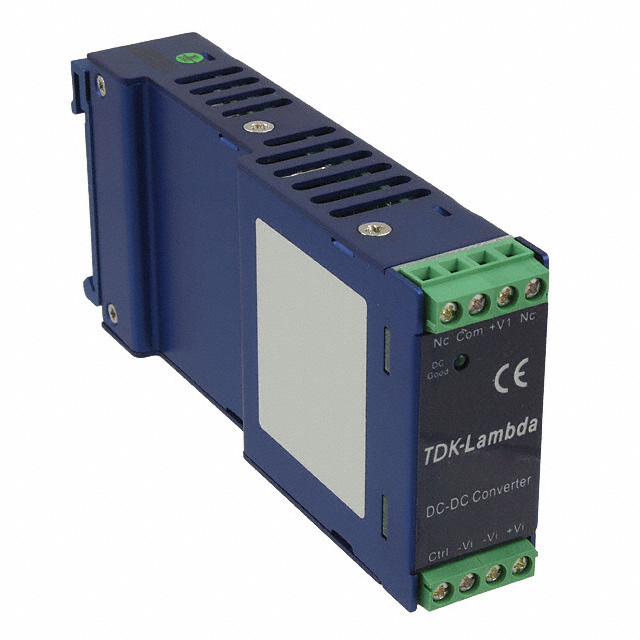

DPX1524WS05

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy DPX1524WS05 with confidence from Components-World.HK, 1 Year Warranty

Request a Quote

Part Number	DPX1524WS05
Manufacturer	TDK-Lambda Americas, Inc.
Description	DC/DC CONVERTER 5V 15W
Lead Free Status / RoHS Status	Lead free / RoHS Compliant

~~In Stock~~ 788 pcs
Reference Price (In US Dollars)	20 pcs
Reference Price (In US Dollars)	$40.712

Product parameter
Data sheet

Product parameter

Part Number	DPX1524WS05	Manufacturer	TDK-Lambda Americas, Inc.
Description	DC/DC CONVERTER 5V 15W	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	788 pcs	Data sheet	DPX Install Manual DPX15W Series
Category	Power Supplies - External/Internal (Off-Board)	Voltage - Output 4	-
Voltage - Output 3	-	Voltage - Output 2	-
Voltage - Output 1	5V	Voltage - Input (Min)	9.5V
Voltage - Input (Max)	36V	Type	Enclosed
Size / Dimension	4.92" L x 2.27" W x 0.97" H (125.0mm x 57.6mm x 24.5mm)	Series	DPX
Power (Watts)	15W	Packaging	Bulk
Operating Temperature	-40°C ~ 95°C	Number of Outputs	1
Mounting Type	DIN Rail	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Manufacturer Standard Lead Time	17 Weeks	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Efficiency	85%	Current - Output (Max)	3A
Approvals	CE	Applications	ITE (Commercial)
