DPX162690DT-8022B2

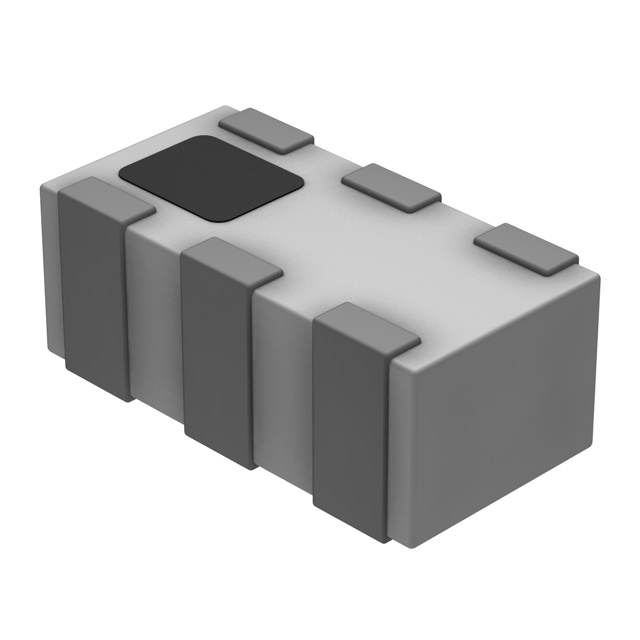

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy DPX162690DT-8022B2 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy DPX162690DT-8022B2 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | DPX162690DT-8022B2 |
|---|---|
| Manufacturer | TDK Corporation |
| Description | RF DIPLEXER 832MHZ/2.2GHZ 0603 |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 100 pcs | |
|---|---|---|---|---|---|
| $0.558 | $0.493 | $0.446 | $0.39 | ||
| 250 pcs | 500 pcs | 1000 pcs | |||
| $0.342 | $0.302 | $0.239 | |||
- Product parameter
- Data sheet
Product parameter
| Part Number | DPX162690DT-8022B2 | Manufacturer | TDK Corporation |
|---|---|---|---|
| Description | RF DIPLEXER 832MHZ/2.2GHZ 0603 | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 86006 pcs | Data sheet | DPX162690DT-8022B2 |
| Category | RF/IF and RFID | Series | DPX |
| Return Loss (Low Band / High Band) | 19.7dB / 9.9dB | Packaging | Cut Tape (CT) |
| Package / Case | 0603 (1608 Metric), 6 PC Pad | Other Names | 445-6880-1 |
| Mounting Type | Surface Mount | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Manufacturer Standard Lead Time | 12 Weeks | Low Band Attenuation (min / max dB) | 20.00dB / - |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | High Band Attenuation (min / max dB) | 17.8dB typical |
| Frequency Bands (Low / High) | 704MHz ~ 960MHz / 1.71GHz ~ 2.69GHz | Detailed Description | RF Diplexor 704MHz ~ 960MHz / 1.71GHz ~ 2.69GHz 0603 (1608 Metric), 6 PC Pad |
