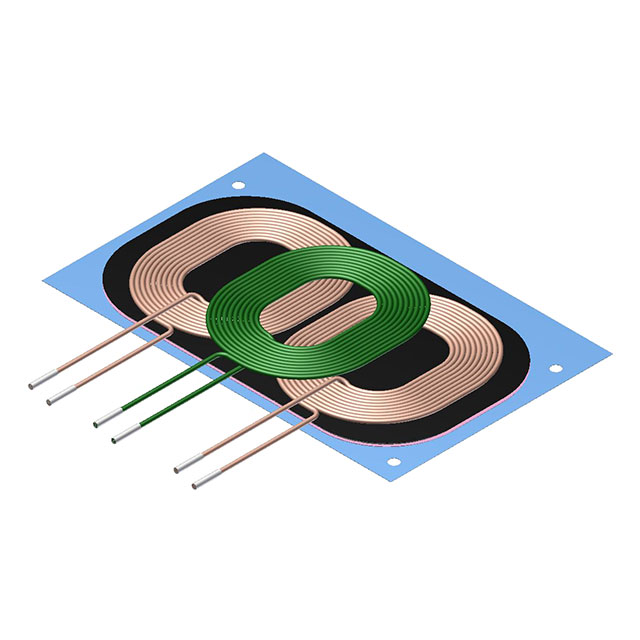

WT1005690-10F2-M8-G2
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy WT1005690-10F2-M8-G2 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy WT1005690-10F2-M8-G2 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | WT1005690-10F2-M8-G2 |
|---|---|
| Manufacturer | TDK Corporation |
| Description | TX 3 COIL, 1 LYR 7.5UH, 8.5UH |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 192 pcs | ||
|---|---|---|---|---|---|
| $4.712 | $4.558 | $4.042 | |||
- Product parameter
- Data sheet
Product parameter
| Part Number | WT1005690-10F2-M8-G2 | Manufacturer | TDK Corporation |
|---|---|---|---|
| Description | TX 3 COIL, 1 LYR 7.5UH, 8.5UH | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 7689 pcs | Data sheet | WT1005690-10F2-M8-G2 Spec |
| Category | Inductors, Coils, Chokes | Type | 3 Coil, 1 Layer |
| Tolerance | - | Size / Dimension | 4.01" L x 2.26" W x 0.18" H (101.8mm x 57.3mm x 4.7mm) |
| Series | WT | Q @ Freq | - |
| Other Names | 445-175302 | Operating Temperature | - |
| Manufacturer Standard Lead Time | 8 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Inductance | 7.5µH, 8.5µH | Function | Transmitter |
| Frequency - Self Resonant | - | Detailed Description | 3 Coil, 1 Layer 7.5µH, 8.5µH Wireless Charging Coil Transmitter 50 mOhm |
| DC Resistance (DCR) | 50 mOhm | Current Rating | - |
| Current - Saturation | - |
