SPM6550T-4R7M

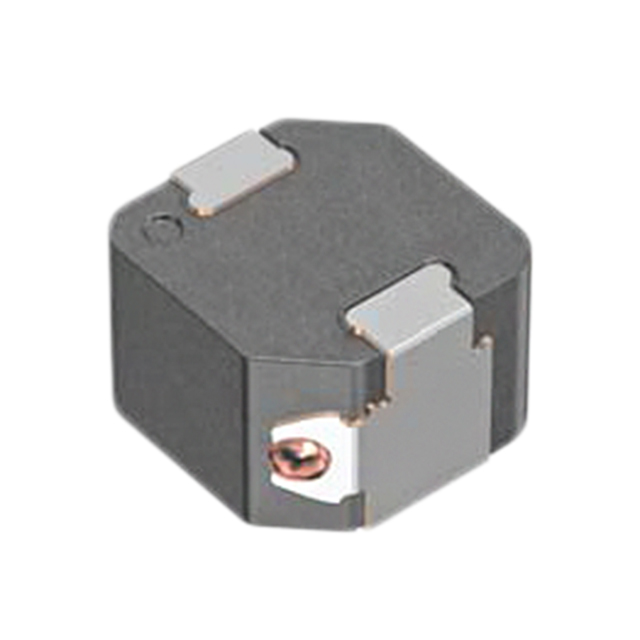

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy SPM6550T-4R7M with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy SPM6550T-4R7M with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | SPM6550T-4R7M |
|---|---|
| Manufacturer | TDK Corporation |
| Description | FIXED IND 4.7UH 7A 23.7 MOHM |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1000 pcs | 3000 pcs | 5000 pcs | 10000 pcs | |
|---|---|---|---|---|---|
| $0.204 | $0.198 | $0.191 | $0.185 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | SPM6550T-4R7M | Manufacturer | TDK Corporation |
|---|---|---|---|
| Description | FIXED IND 4.7UH 7A 23.7 MOHM | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 109749 pcs | Data sheet | SPM6550 Series |
| Category | Inductors, Coils, Chokes | Type | Wirewound |
| Tolerance | ±20% | Size / Dimension | 0.280" L x 0.256" W (7.10mm x 6.50mm) |
| Shielding | Shielded | Series | SPM |
| Ratings | - | Q @ Freq | - |
| Packaging | Tape & Reel (TR) | Package / Case | 2-SMD, J-Lead |
| Other Names | 445-174746-2 | Operating Temperature | -40°C ~ 125°C |
| Mounting Type | Surface Mount | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Material - Core | Metal | Manufacturer Standard Lead Time | 25 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Inductance Frequency - Test | 100kHz |
| Inductance | 4.7µH | Height - Seated (Max) | 0.203" (5.15mm) |
| Frequency - Self Resonant | - | Detailed Description | 4.7µH Shielded Wirewound Inductor 7A 23.7 mOhm Max 2-SMD, J-Lead |
| DC Resistance (DCR) | 23.7 mOhm Max | Current Rating | 7A |
| Current - Saturation | 7.6A |
