SD1614TT-B3M

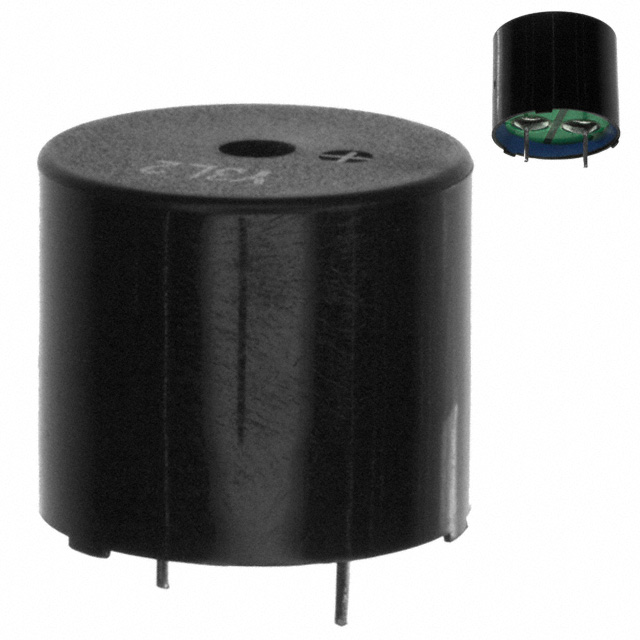

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy SD1614TT-B3M with confidence from Components-World.HK, 1 Year Warranty
Dowload SD1614TT-B3M Details in PDFSee Product Specifications for product details.
Buy SD1614TT-B3M with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | SD1614TT-B3M |
|---|---|
| Manufacturer | TDK Corporation |
| Description | AUDIO MAGNETIC XDCR 6-16V TH |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 50 pcs | |
|---|---|---|---|---|---|
| $0.704 | $0.558 | $0.509 | $0.474 | ||
| 100 pcs | 250 pcs | 500 pcs | 1000 pcs | ||
| $0.442 | $0.402 | $0.376 | $0.361 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | SD1614TT-B3M | Manufacturer | TDK Corporation |
|---|---|---|---|
| Description | AUDIO MAGNETIC XDCR 6-16V TH | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 102245 pcs | Data sheet | SD Series Datasheet |
| Category | Audio Products | Voltage Range | 6 ~ 16V |
| Voltage - Rated | 12V | Termination | PC Pins |
| Technology | Magnetic | Sound Pressure Level (SPL) | 85dB @ 12V, 10cm |
| Size / Dimension | 0.630" Dia (16.00mm) | Series | SD |
| Ratings | - | Port Location | Top |
| Packaging | Bulk | Other Names | 445-5228 SD1614TTB3M |
| Operating Temperature | -40°C ~ 85°C | Operating Mode | Single Tone |
| Mounting Type | Through Hole | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Manufacturer Standard Lead Time | 8 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Input Type | Zero-Peak Signal | Height - Seated (Max) | 0.551" (14.00mm) |
| Frequency | 2.048kHz | Duration | - |
| Driver Circuitry | Transducer, Externally Driven | Detailed Description | Buzzers Transducer, Externally Driven Magnetic 12V 100mA 2.048kHz 85dB @ 12V, 10cm Through Hole PC Pins |
| Current - Supply | 100mA | Approvals | - |
