SD160701

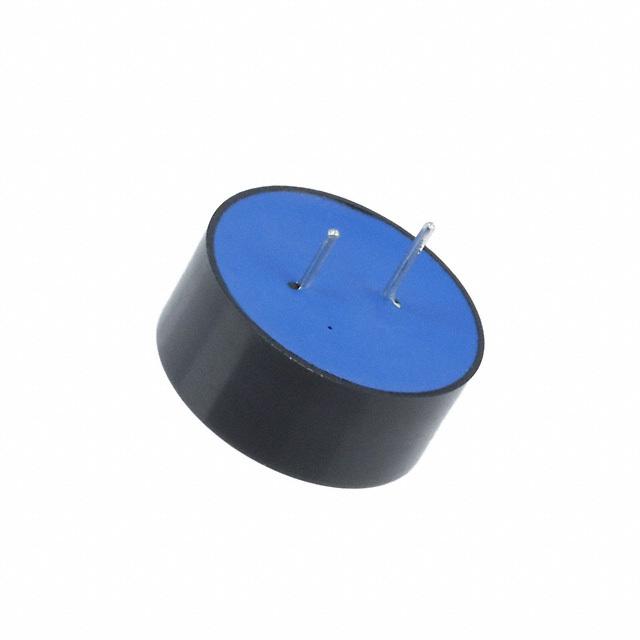

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy SD160701 with confidence from Components-World.HK, 1 Year Warranty
Dowload SD160701 Details in PDFSee Product Specifications for product details.
Buy SD160701 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | SD160701 |
|---|---|
| Manufacturer | TDK Corporation |
| Description | AUDIO MAGNETIC XDCR 1-5V TH |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 50 pcs | |
|---|---|---|---|---|---|
| $0.687 | $0.545 | $0.498 | $0.465 | ||
| 100 pcs | 480 pcs | 960 pcs | 1440 pcs | ||
| $0.434 | $0.396 | $0.368 | $0.346 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | SD160701 | Manufacturer | TDK Corporation |
|---|---|---|---|
| Description | AUDIO MAGNETIC XDCR 1-5V TH | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 63551 pcs | Data sheet | SD Series Datasheet |
| Category | Audio Products | Voltage Range | 1 ~ 5V |
| Voltage - Rated | 3V | Termination | PC Pins |
| Technology | Magnetic | Sound Pressure Level (SPL) | 80dB @ 3V, 10cm |
| Size / Dimension | 0.630" Dia (16.00mm) | Series | SD |
| Ratings | - | Port Location | Top |
| Packaging | Tray | Other Names | 445-15896 Q4300888D SD160701-ND |
| Operating Temperature | -10°C ~ 70°C | Operating Mode | Single Tone |
| Mounting Type | Through Hole | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Manufacturer Standard Lead Time | 8 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Input Type | Zero-Peak Signal | Height - Seated (Max) | 0.276" (7.00mm) |
| Frequency | 4.096kHz | Duration | - |
| Driver Circuitry | Transducer, Externally Driven | Detailed Description | Buzzers Transducer, Externally Driven Magnetic 3V 60mA 4.096kHz 80dB @ 3V, 10cm Through Hole PC Pins |
| Current - Supply | 60mA | Approvals | - |
