ACM4520-421-2P-TL000

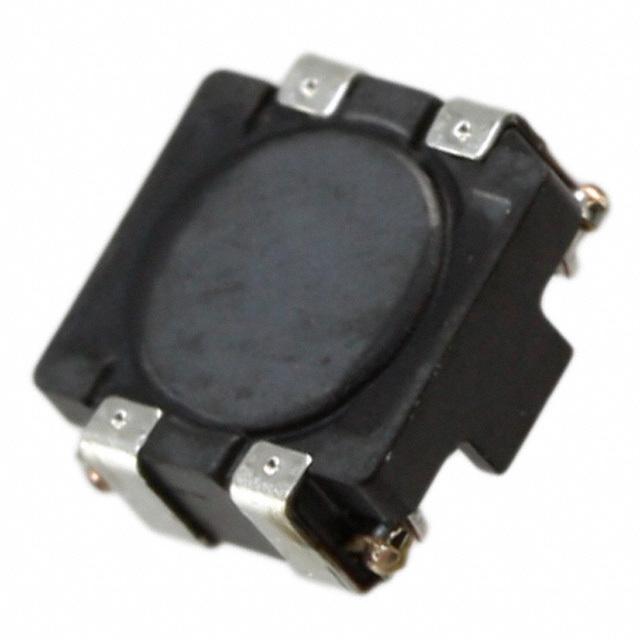

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy ACM4520-421-2P-TL000 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy ACM4520-421-2P-TL000 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | ACM4520-421-2P-TL000 |
|---|---|
| Manufacturer | TDK Corporation |
| Description | CMC 2.4A 2LN 420 OHM SMD |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 800 pcs | ||||
|---|---|---|---|---|---|
| $0.182 | |||||
- Product parameter
- Data sheet
Product parameter
| Part Number | ACM4520-421-2P-TL000 | Manufacturer | TDK Corporation |
|---|---|---|---|
| Description | CMC 2.4A 2LN 420 OHM SMD | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 103537 pcs | Data sheet | ACM4520 Series, Commercial |
| Category | Filters | Voltage Rating - DC | 50V |
| Voltage Rating - AC | - | Size / Dimension | 0.185" L x 0.177" W (4.70mm x 4.50mm) |
| Series | ACM | Ratings | - |
| Packaging | Tape & Reel (TR) | Package / Case | Horizontal, 4 PC Pad |
| Operating Temperature | -40°C ~ 85°C | Number of Lines | 2 |
| Mounting Type | Surface Mount | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Manufacturer Standard Lead Time | 25 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Impedance @ Frequency | 420 Ohms @ 100MHz | Height (Max) | 0.079" (2.00mm) |
| Filter Type | Power Line | Features | - |
| Detailed Description | 2 Line Common Mode Choke Surface Mount 420 Ohms @ 100MHz 2.4A DCR 55 mOhm | DC Resistance (DCR) (Max) | 55 mOhm |
| Current Rating (Max) | 2.4A | Approvals | - |
