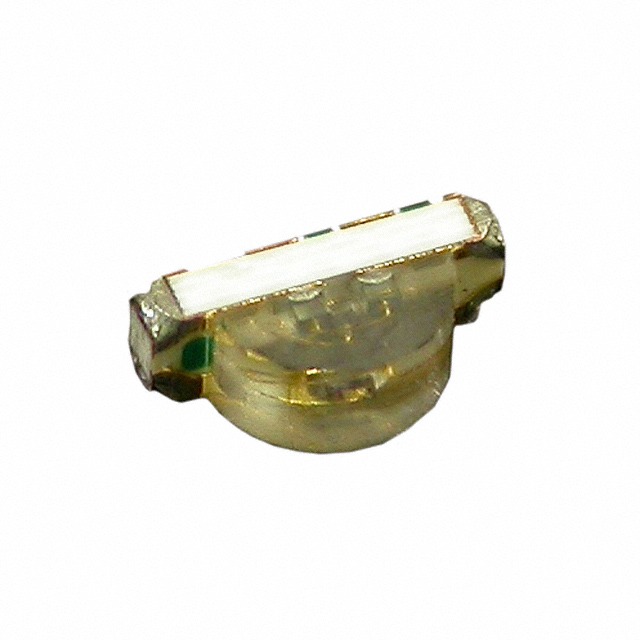

XZMDKDGCBD56W
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy XZMDKDGCBD56W with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy XZMDKDGCBD56W with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | XZMDKDGCBD56W |
|---|---|
| Manufacturer | SunLED |
| Description | LED RGB CLEAR CHIP SMD R/A |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 2000 pcs | 6000 pcs | 10000 pcs | ||
|---|---|---|---|---|---|
| $0.134 | $0.131 | $0.126 | |||
- Product parameter
- Data sheet
Product parameter
| Part Number | XZMDKDGCBD56W | Manufacturer | SunLED |
|---|---|---|---|
| Description | LED RGB CLEAR CHIP SMD R/A | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 159308 pcs | Data sheet | XZMDKDGCBD56W |
| Category | Optoelectronics | Wavelength - Peak | 645nm Red, 515nm Green, 460nm Blue |
| Wavelength - Dominant | 630nm Red, 525nm Green, 465nm Blue | Voltage - Forward (Vf) (Typ) | 1.95V Red, 3.3V Green, 3.3V Blue |
| Viewing Angle | 120° | Supplier Device Package | Chip LED |
| Size / Dimension | 3.00mm L x 1.50mm W | Series | - |
| Packaging | Tape & Reel (TR) | Package / Case | 4-SMD, No Lead |
| Other Names | 1497-1180-2 | Mounting Type | Surface Mount, Right Angle |
| Moisture Sensitivity Level (MSL) | 3 (168 Hours) | Millicandela Rating | 79mcd Red, 297mcd Green, 69mcd Blue |
| Manufacturer Standard Lead Time | 6 Weeks | Lens Transparency | Clear |
| Lens Style/Size | Rectangle with Domed Top, 2.00mm x 1.00mm | Lens Color | Colorless |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Height (Max) | 1.00mm |
| Features | - | Detailed Description | Red, Green, Blue (RGB) 630nm Red, 525nm Green, 465nm Blue LED Indication - Discrete 1.95V Red, 3.3V Green, 3.3V Blue 4-SMD, No Lead |
| Current - Test | 20mA Red, 20mA Green, 20mA Blue | Configuration | Common Anode |
| Color | Red, Green, Blue (RGB) |
