XZMDKCBDDG45S-9

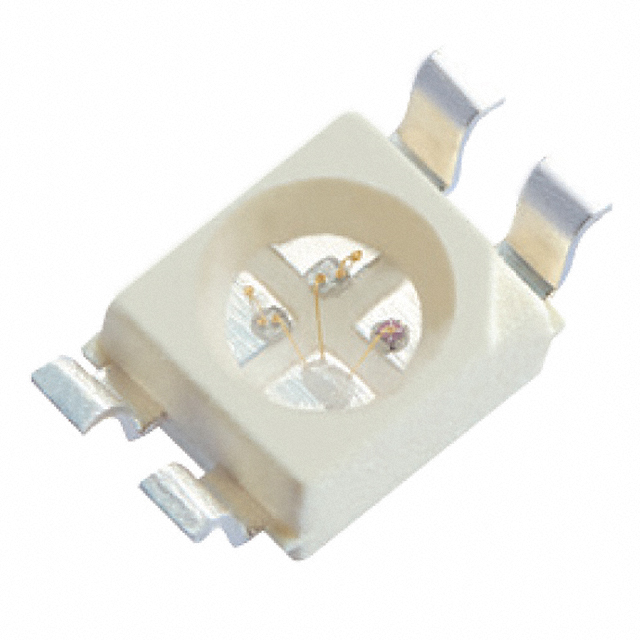

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy XZMDKCBDDG45S-9 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy XZMDKCBDDG45S-9 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | XZMDKCBDDG45S-9 |
|---|---|
| Manufacturer | SunLED |
| Description | LED RGB CLEAR 4PLCC SMD |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 2000 pcs | 6000 pcs | 10000 pcs | ||
|---|---|---|---|---|---|
| $0.154 | $0.15 | $0.144 | |||
- Product parameter
- Data sheet
Product parameter
| Part Number | XZMDKCBDDG45S-9 | Manufacturer | SunLED |
|---|---|---|---|
| Description | LED RGB CLEAR 4PLCC SMD | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 143110 pcs | Data sheet | XZMDKCBDDG45S-9 |
| Category | Optoelectronics | Wavelength - Peak | 645nm Red, 515nm Green, 460nm Blue |
| Wavelength - Dominant | 630nm Red, 525nm Green, 465nm Blue | Voltage - Forward (Vf) (Typ) | 1.95V Red, 3.3V Green, 3.3V Blue |
| Viewing Angle | 120° | Supplier Device Package | 4-PLCC |
| Size / Dimension | 3.20mm L x 2.80mm W | Series | - |
| Packaging | Tape & Reel (TR) | Package / Case | 4-SMD, Gull Wing |
| Other Names | 1497-1257-2 XZMDKCBDDG45S-9-ND |
Mounting Type | Surface Mount, Bottom Entry |
| Moisture Sensitivity Level (MSL) | 3 (168 Hours) | Millicandela Rating | 108mcd Red, 497mcd Green, 98mcd Blue |
| Manufacturer Standard Lead Time | 6 Weeks | Lens Transparency | Clear |
| Lens Style/Size | Round with Flat Top, 2.40mm | Lens Color | Colorless |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Height (Max) | 1.90mm |
| Features | - | Detailed Description | Red, Green, Blue (RGB) 630nm Red, 525nm Green, 465nm Blue LED Indication - Discrete 1.95V Red, 3.3V Green, 3.3V Blue 4-SMD, Gull Wing |
| Current - Test | 20mA Red, 20mA Green, 20mA Blue | Configuration | Common Anode |
| Color | Red, Green, Blue (RGB) |
