PFC2225BNP-502

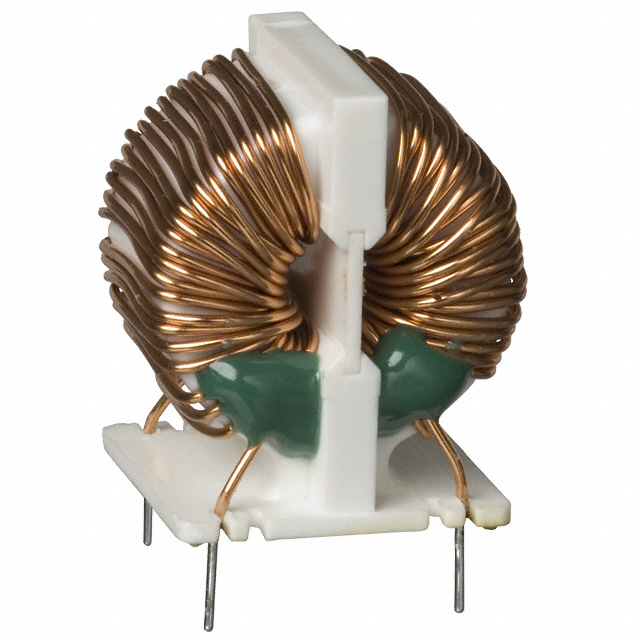

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy PFC2225BNP-502 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy PFC2225BNP-502 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | PFC2225BNP-502 |
|---|---|
| Manufacturer | Sumida Corporation |
| Description | COMMON MODE CHOKE 5MH 3A 2LN TH |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1000 pcs | ||||
|---|---|---|---|---|---|
| $0.956 | |||||
- Product parameter
- Data sheet
Product parameter
| Part Number | PFC2225BNP-502 | Manufacturer | Sumida Corporation |
|---|---|---|---|
| Description | COMMON MODE CHOKE 5MH 3A 2LN TH | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 39501 pcs | Data sheet | PFC2225B |
| Category | Filters | Voltage Rating - DC | - |
| Voltage Rating - AC | - | Size / Dimension | 0.984" L x 0.787" W (25.00mm x 20.00mm) |
| Series | PFC | Ratings | - |
| Packaging | Bulk | Package / Case | Vertical, No Base, 4 PC Pin |
| Other Names | 308-1408 | Operating Temperature | -40°C ~ 85°C |
| Number of Lines | 2 | Mounting Type | Through Hole |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Inductance @ Frequency | 5mH @ 1kHz | Height (Max) | 1.063" (27.00mm) |
| Filter Type | - | Features | - |
| Detailed Description | 5mH @ 1kHz 2 Line Common Mode Choke Through Hole 3A DCR 81 mOhm | DC Resistance (DCR) (Max) | 81 mOhm |
| Current Rating (Max) | 3A | Approvals | - |
