SMS12RE4S6

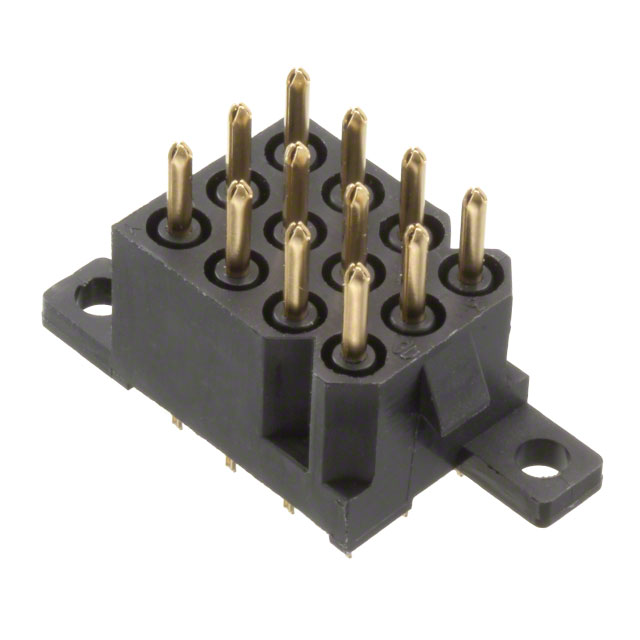

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy SMS12RE4S6 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy SMS12RE4S6 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | SMS12RE4S6 |
|---|---|
| Manufacturer | Souriau Connection Technology |
| Description | SMS STRGHT BRDMNT MLE CONS |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 100 pcs | 500 pcs | 1000 pcs |
|---|---|---|---|---|---|
| $3.346 | $3.202 | $2.693 | $2.256 | $1.994 | |
- Product parameter
- Data sheet
Product parameter
| Part Number | SMS12RE4S6 | Manufacturer | Souriau Connection Technology |
|---|---|---|---|
| Description | SMS STRGHT BRDMNT MLE CONS | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 18240 pcs | Data sheet | SM(x)yyR(E) DrawingSMS Series Catalog |
| Category | Connectors, Interconnects | Voltage Rating | - |
| Termination | Solder | Style | Board to Cable/Wire |
| Shrouding | Unshrouded | Series | SMS |
| Row Spacing - Mating | 0.200" (5.08mm) | Pitch - Mating | 0.200" (5.08mm) |
| Packaging | Bulk | Overall Contact Length | 0.972" (24.70mm) |
| Other Names | SMS12RE4S6-ND SOU2163 |
Operating Temperature | -55°C ~ 125°C |
| Number of Rows | 4 | Number of Positions Loaded | All |
| Number of Positions | 12 | Mounting Type | Through Hole |
| Material Flammability Rating | UL94 V-0 | Mated Stacking Heights | - |
| Manufacturer Standard Lead Time | 13 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Insulation Material | Polyester, Glass Filled | Insulation Height | 0.520" (13.20mm) |
| Insulation Color | Black | Ingress Protection | IP40 |
| Features | Mounting Flange | Fastening Type | Locking Ramp |
| Detailed Description | Connector Header Through Hole 12 position 0.200" (5.08mm) | Current Rating | 5A |
| Contact Type | Male Pin | Contact Shape | Circular |
| Contact Material | Copper Alloy | Contact Length - Post | 0.173" (4.40mm) |
| Contact Length - Mating | 0.280" (7.11mm) | Contact Finish Thickness - Post | - |
| Contact Finish Thickness - Mating | 16.0µin (0.41µm) | Contact Finish - Post | Tin |
| Contact Finish - Mating | Gold | Connector Type | Header |
| Applications | - |
