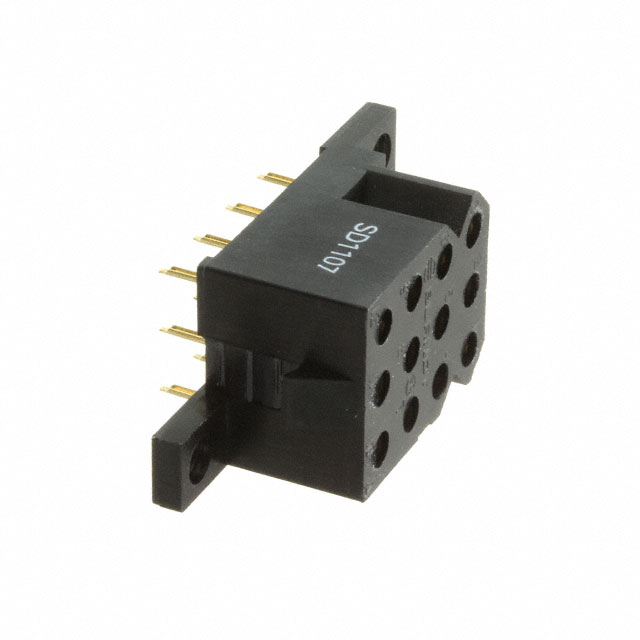

SMS12RE3D70
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy SMS12RE3D70 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy SMS12RE3D70 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | SMS12RE3D70 |
|---|---|
| Manufacturer | Souriau Connection Technology |
| Description | QIKMATE HDR RECEP 12POS |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 100 pcs | 500 pcs | 1000 pcs |
|---|---|---|---|---|---|
| $2.529 | $2.423 | $2.002 | $1.686 | $1.475 | |
- Product parameter
Product parameter
| Part Number | SMS12RE3D70 | Manufacturer | Souriau Connection Technology |
|---|---|---|---|
| Description | QIKMATE HDR RECEP 12POS | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 25563 pcs | Data sheet | |
| Category | Connectors, Interconnects | Voltage Rating | - |
| Termination | Solder | Style | Board to Board or Cable |
| Series | SMS | Row Spacing - Mating | 0.200" (5.08mm) |
| Pitch - Mating | 0.200" (5.08mm) | Packaging | Bulk |
| Other Names | SMS12RE3D70-ND SOU2180 |
Operating Temperature | -55°C ~ 105°C |
| Number of Rows | 4 | Number of Positions Loaded | All |
| Number of Positions | 12 | Mounting Type | Through Hole |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Flammability Rating | UL94 V-0 |
| Mated Stacking Heights | - | Manufacturer Standard Lead Time | 13 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Insulation Material | Thermoplastic, Glass Filled |
| Insulation Height | 0.528" (13.40mm) | Insulation Color | Black |
| Ingress Protection | IP40 | Features | Mounting Flange |
| Fastening Type | Locking Ramp | Detailed Description | 12 Position Receptacle Connector 0.200" (5.08mm) Through Hole Gold |
| Current Rating | 5A | Contact Type | Female Socket |
| Contact Shape | Circular | Contact Material | Copper Alloy |
| Contact Length - Post | 0.173" (4.40mm) | Contact Finish Thickness - Post | Flash |
| Contact Finish Thickness - Mating | Flash | Contact Finish - Post | Gold |
| Contact Finish - Mating | Gold | Connector Type | Receptacle |
| Applications | - |
