PQ2CF1J0000H

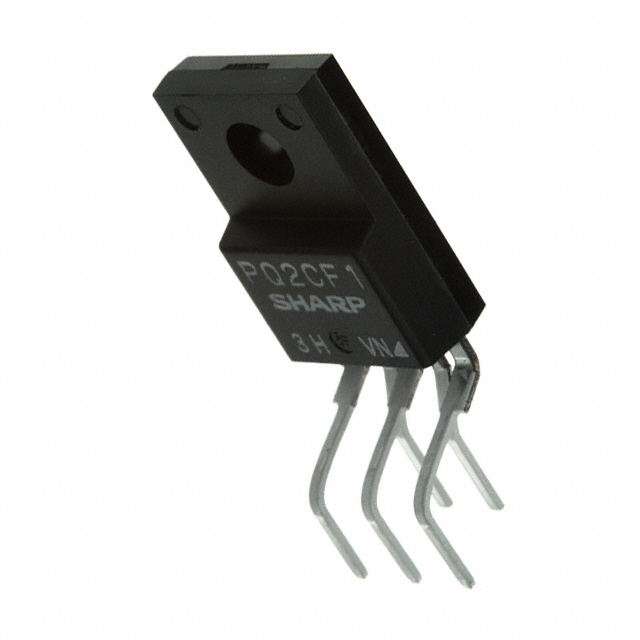

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy PQ2CF1J0000H with confidence from Components-World.HK, 1 Year Warranty
Dowload PQ2CF1J0000H Details in PDFSee Product Specifications for product details.
Buy PQ2CF1J0000H with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | PQ2CF1J0000H |
|---|---|
| Manufacturer | Sharp Microelectronics |
| Description | IC REG BST FLYBCK ADJ 2.5A TO220 |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | Get a quote | ||||
- Product parameter
- Data sheet
Product parameter
| Part Number | PQ2CF1J0000H | Manufacturer | Sharp Microelectronics |
|---|---|---|---|
| Description | IC REG BST FLYBCK ADJ 2.5A TO220 | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 4103 pcs | Data sheet | PQ2CF1 |
| Category | Integrated Circuits (ICs) | Voltage - Output (Min/Fixed) | 4.5V |
| Voltage - Output (Max) | 35V (Switch) | Voltage - Input (Min) | 3.5V |
| Voltage - Input (Max) | 10V | Topology | Boost, Flyback |
| Synchronous Rectifier | No | Supplier Device Package | TO-220 |
| Series | - | Packaging | Tube |
| Package / Case | TO-220-5 Formed Leads | Output Type | Adjustable |
| Output Configuration | Positive | Other Names | 425-2340-5 |
| Operating Temperature | -20°C ~ 80°C (TA) | Number of Outputs | 1 |
| Mounting Type | Through Hole | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Function | Step-Up, Step-Up/Step-Down |
| Frequency - Switching | 50kHz | Detailed Description | Boost, Flyback Switching Regulator IC Positive Adjustable 4.5V 1 Output 2.5A (Switch) TO-220-5 Formed Leads |
| Current - Output | 2.5A (Switch) |
