PC724V0NIPXF

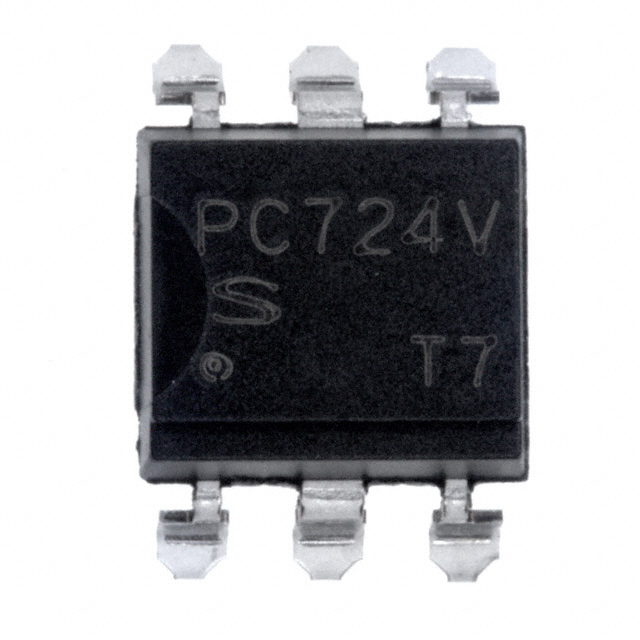

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy PC724V0NIPXF with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy PC724V0NIPXF with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | PC724V0NIPXF |
|---|---|
| Manufacturer | Sharp Microelectronics |
| Description | OPTOISOLATR 5KV TRANSISTOR 6-SMD |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | Get a quote | ||||
- Product parameter
- Data sheet
Product parameter
| Part Number | PC724V0NIPXF | Manufacturer | Sharp Microelectronics |
|---|---|---|---|
| Description | OPTOISOLATR 5KV TRANSISTOR 6-SMD | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 4279 pcs | Data sheet | PC724V0NSZX Series |
| Category | Isolators | Voltage - Output (Max) | 35V |
| Voltage - Isolation | 5000Vrms | Voltage - Forward (Vf) (Typ) | 1.4V |
| Vce Saturation (Max) | 200mV | Turn On / Turn Off Time (Typ) | - |
| Supplier Device Package | 6-SMD | Series | - |
| Rise / Fall Time (Typ) | 4µs, 3µs | Packaging | Tape & Reel (TR) |
| Package / Case | 6-SMD, Gull Wing | Output Type | Transistor |
| Other Names | 425-2158-2 | Operating Temperature | -25°C ~ 100°C |
| Number of Channels | 1 | Mounting Type | Surface Mount |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Input Type | DC |
| Detailed Description | Optoisolator Transistor Output 5000Vrms 1 Channel 6-SMD | Current Transfer Ratio (Min) | 20% @ 100mA |
| Current Transfer Ratio (Max) | 80% @ 100mA | Current - Output / Channel | 80mA |
| Current - DC Forward (If) (Max) | 150mA |
