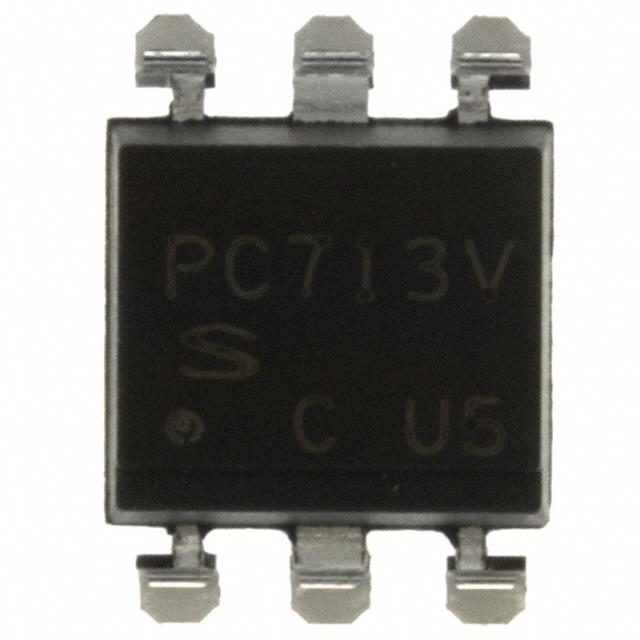

PC713V0NIZXF
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy PC713V0NIZXF with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy PC713V0NIZXF with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | PC713V0NIZXF |
|---|---|
| Manufacturer | Sharp Microelectronics |
| Description | OPTOISO 5KV TRANS W/BASE 6SMD |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | ||
|---|---|---|---|---|---|
| $0.308 | $0.24 | $0.199 | |||
- Product parameter
- Data sheet
Product parameter
| Part Number | PC713V0NIZXF | Manufacturer | Sharp Microelectronics |
|---|---|---|---|
| Description | OPTOISO 5KV TRANS W/BASE 6SMD | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 95325 pcs | Data sheet | PC713VxNSZXF Series |
| Category | Isolators | Voltage - Output (Max) | 80V |
| Voltage - Isolation | 5000Vrms | Voltage - Forward (Vf) (Typ) | 1.2V |
| Vce Saturation (Max) | 200mV | Turn On / Turn Off Time (Typ) | - |
| Supplier Device Package | 6-SMD | Series | - |
| Rise / Fall Time (Typ) | 4µs, 3µs | Packaging | Tube |
| Package / Case | 6-SMD, Gull Wing | Output Type | Transistor with Base |
| Other Names | 425-2154-5 | Operating Temperature | -25°C ~ 100°C |
| Number of Channels | 1 | Mounting Type | Surface Mount |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Input Type | DC |
| Detailed Description | Optoisolator Transistor with Base Output 5000Vrms 1 Channel 6-SMD | Current Transfer Ratio (Min) | 50% @ 5mA |
| Current Transfer Ratio (Max) | 600% @ 5mA | Current - Output / Channel | 50mA |
| Current - DC Forward (If) (Max) | 50mA |
