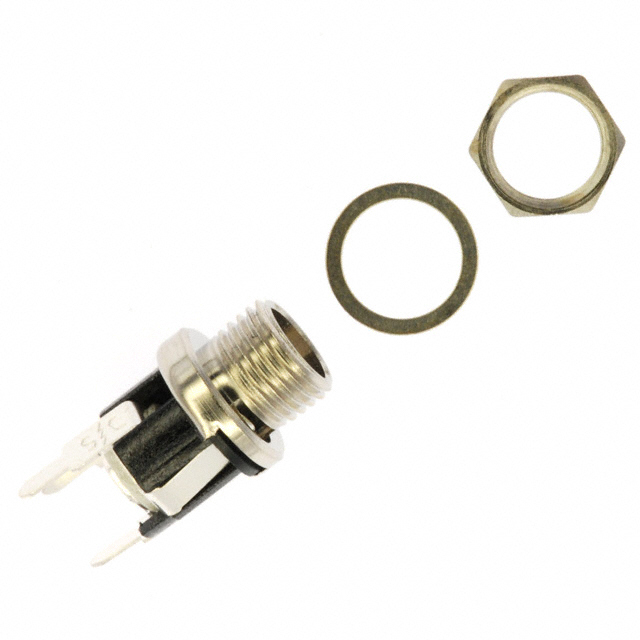

PC712A
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy PC712A with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy PC712A with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | PC712A |
|---|---|
| Manufacturer | Conxall / Switchcraft |
| Description | CONN PWR JACK 2.5X5.5MM SOLDER |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | ||
|---|---|---|---|---|---|
| $0.929 | $0.752 | $0.689 | |||
| 50 pcs | 100 pcs | 250 pcs | |||
| $0.658 | $0.627 | $0.612 | |||
- Product parameter
- Data sheet
Product parameter
| Part Number | PC712A | Manufacturer | Conxall / Switchcraft |
|---|---|---|---|
| Description | CONN PWR JACK 2.5X5.5MM SOLDER | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 56129 pcs | Data sheet | Jack SchematicsPC712A Drawing |
| Category | Connectors, Interconnects | Voltage - Rated | 48V |
| Thread Size | 5/16"-32 | Termination | Solder |
| Shielding | Unshielded | Series | - |
| Packaging | Bulk | Other Names | SC1050 |
| Operating Temperature | - | Number of Positions/Contacts | 2 Conductors, 3 Contacts |
| Mounting Type | Through Hole | Mounting Feature | Bulkhead - Front Side Nut |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Mating Length/Depth | - |
| Material Flammability Rating | - | Manufacturer Standard Lead Time | 12 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Internal Switch(s) | Single Switch, Normally Closed |
| Insulation Color | - | Ingress Protection | - |
| Industry Recognized Mating Diameter | 2.50mm ID (0.098"), 5.50mm OD (0.217") | Includes | 3 pcs - 1 Connector, 1 Nut, 1 Washer |
| Housing Material | Thermoplastic | Gender | Male |
| Features | Mounting Hardware, Thread Lock | Detailed Description | Power Barrel Connector Jack 2.50mm ID (0.098"), 5.50mm OD (0.217") Through Hole |
| Current Rating | 5A | Contact Material - Plating | Silver |
| Contact Material | Copper Alloy | Connector Type | Jack |
| Body Material | Copper Alloy | Body Color | Silver, Black |
| Actual Diameter | 0.098" (2.50mm) |
